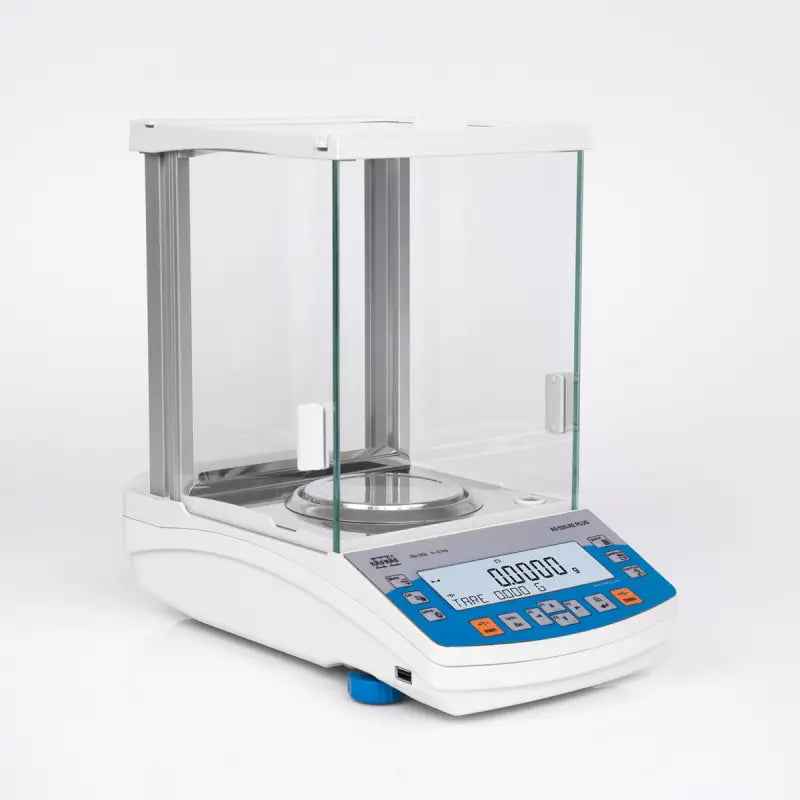

RADWAG AS 310.R2 PLUS.NTEP ANALYTICAL BALANCE, 310 G X 0.1 MG, NTEP CLASS I
OVERVIEW
Radwag AS 310.R2 PLUS Analytical Balance
The Radwag AS 310.R2 PLUS analytical balance offers elevated performance and functionality for demanding laboratory weighing tasks. The Radwag AS R2 Plus series features a USB connection in the front of the balance for simpler connectivity. This series also features newer construction design with increases the reliability of the balance in long term operation. The Plus series is designed with anti-static pane coating which helps to eliminate the effects of electrostatics on weighing results.
ALIBI memory allows storage of up to 100 user profiles, 100 formulas and a whopping 500,000 weighing results! An expanded communication port includes two RS232, USB A and USB B with optional Wifi connectivity to peripheral devices such as PCs and printers.
Features
- 310 gram capacity with 0.0001 gram readability
- Spacious weighing chamber
- Innovative construction solutions increase balance durability and reliability in long-term operation
- Special antistatic pane coating eliminates the influence of electrostatics onto the weighing result
- Automatic internal calibration
- Multiple connectivity ports including 2 x RS232, USB A, USB B
- One of the USB connections available at the front of the balance for easier connection
- Multiple weighing functions including underhook weighing for density determination
- Durable construction features ABS plastic housing, stainless steel pan and glass draft shield
- ALIBI memory includes storage of up to 100 users, 100 formulations, 5000 products, and 500,000 weighing results
- User friendly operation with intuitive menu and keypad
- Large bright LCD display with 14 button keypad
Weighing Applications
- Weighing
- Checkweighing
- Animal weighing / Dynamic weighing
- Parts counting
- Percent weighing
- Dosing / Formulation
- Density determination
- Statistics
- Totalization
Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.
Datasheet
Metrological parameters
Physical parameters
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max] |
310 g |
Minimum load |
10 mg |
Readability [d] |
0.1 mg |
Verification scale interval [e] |
1 mg |
Tare range |
-310 g |
Standard repeatability [5% Max] |
0.08 mg |
Standard repeatability [Max] |
0.12 mg |
Standard minimum weight (USP) |
160 mg |
Standard minimum weight (U=1%, k=2) |
16 mg |
Permissible repeatability [5% Max] |
0.12 mg |
Permissible repeatability [Max] |
0.15 mg |
Linearity |
±0.2 mg |
Stabilization time |
2.5 s |
Adjustment |
internal (automatic)
|
OIML Class |
I
|
Leveling system |
manual
|
Display |
LCD (backlit)
|
Protection class |
IP 43
|
Delivery components |
Balance, weighing pan, weighing pan shield, bottom cover, power supply.
|
Weighing pan dimensions |
ø100 mm |
Packaging dimensions |
495×400×515 mm |
Net weight |
7.3 kg |
Gross weight |
9.3 kg |
Communication interface |
2×RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi® (option)
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Power consumption max. |
3 W
|
Operating temperature |
+10 — +40 °C |
