RADWAG AS 62.X2 PLUS.NTEP SEMI MICRO BALANCE, 62 G X 0.01 MG, NTEP CLASS I
OVERVIEW

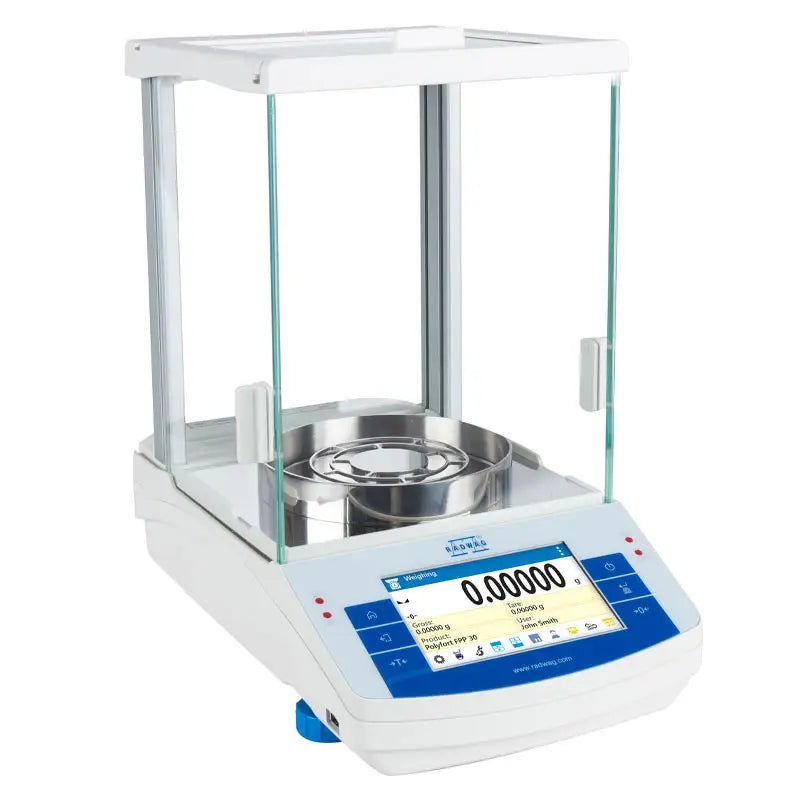

Radwag AS 60/220.X2 PLUS Dual Range Semi Micro Balance
Radwag AS 62.X2 PLUS Analytical Balance
Radwag AS X2 PLUS series semi micro balances offer elevated performance and functionality for demanding laboratory weighing tasks. The Radwag X2 PLUS is the only balance available on the market that provides a user with the option to customize the brilliant 5" color touchscreen display using a wide selection of widgets. Having the capability of a customized display offers direct access to weighing results and other important information directly from the home screen. Automatic internal calibration helps ensure weighing accuracy when the balance detects temperature change or defined time lapse. ALIBI memory allows storage of up to 100 user profiles, 100 formulas and a whopping 500,000 weighing results!
Features
- 62 g capacity and 0.01 mg readability
- Two programmable IR sensors allow for touchless operation
- Large 5" color touchscreen display
- Customizable display allows user to setup the home menu based on their requirements
- Automatic internal calibration
- Multiple connectivity ports including RS 232, 2 x USB-A, USB-B, WiFi, and Ethernet
- Multiple weighing functions including underhook weighing for density determination
- Durable construction features ABS plastic housing, stainless steel pan and glass draft shield
- ALIBI memory includes storage of up to 100 users, 100 formulations, 5000 products, and 500,000 weighing results
- User friendly operation with intuitive menu and keypad
- Large bright LCD display
Weighing Applications
- Weighing
- Checkweighing
- Animal weighing / Dynamic weighing
- Parts counting
- Percent weighing
- Dosing / Formulation
- Density determination
- Statistics
- Totalization
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Product Specifications
Maximum capacity [Max] |
62 g |
Minimum load |
1 mg |
Readability [d] |
0.01 mg |
Verification scale interval [e] |
1 mg |
Tare range |
-62 g |
Standard repeatability [5% Max] |
0.01 mg |
Standard repeatability [Max] |
0.017 mg |
Standard minimum weight (USP) |
20 mg |
Standard minimum weight (U=1%, k=2) |
2 mg |
Permissible repeatability [5% Max] |
0.02 mg |
Permissible repeatability [Max] |
0.03 mg |
Linearity |
±0.05 mg |
Stabilization time |
3 s |
Adjustment |
internal (automatic)
|
OIML Class |
I
|
Leveling system |
manual
|
Display |
5” graphic color touchscreen
|
Protection class |
IP 43
|
Delivery components |
Balance, weighing pan, weighing pan shield, centring ring, bottom cover, power supply, fabric dust cover.
|
Weighing chamber dimensions |
190×190×222 mm |
Weighing pan dimensions |
ø90 open-work pan + ø85 (option) mm |
Packaging dimensions |
495×400×515 mm |
Net weight |
7.3 kg |
Gross weight |
9.3 kg |
Database capacity |
7
|
Communication interface |
RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet
|
Touch-free operation |
2 IR Sensors
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Power consumption max. |
4 W
|
Operating temperature |
+10 — +40 °C |
Relative humidity |
40% — 80%
|
