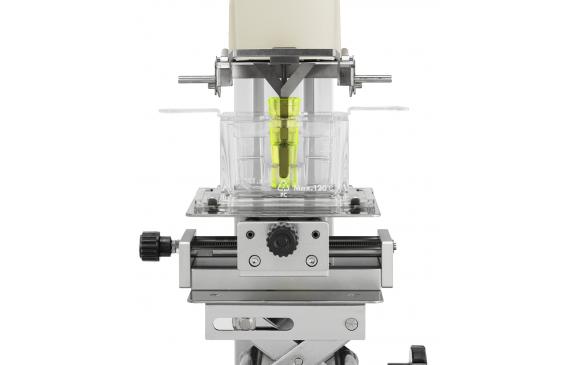

A&D Weighing SV-1A 0.8 cP - 1000 cP

Flexible and Versitale

• Wide measurement range: 0.3 - 10,000mPa.s for SV-10, and 1,000 - 100,000mPa.s for SV-100
• Measurement of very low viscosities (down to 1/3 of water viscosity!)
• Small size sample: cups of 35ml, 13ml, 10ml, and even tubes of 2ml (with SV-1A)
• Possible continuous measurements in order to characterize changes of state
• More application possibilities due to measurements taken directly into your containers of choice: beakers, product packages

Fast, Simple, and Accurate

• Fast measurements: 1st result within 15 seconds, and refresh in real time
• Simple operation: no configuration - just push the start button
• Calibration (judgement and even adjustment) of viscosity possible by the user: 1 or 2 points
• Simplified and automated calibration (including adjustment) with pure water (SV-10)
• High precision with a repeatability of ?1% of displayed value
• WinCT-Viscosity software for data acquisition on PC, graphic display of curves, and data archiving

Attention to Variables

• Temperature measurement from 0 to 160 degree C
• Vibration method allows for negligible thermal impact
• Low mechanical impact therefore can preserve sample characteristics and its texture
• Temperature control of sample with water jacket option (AX-SV-37) or other methods
