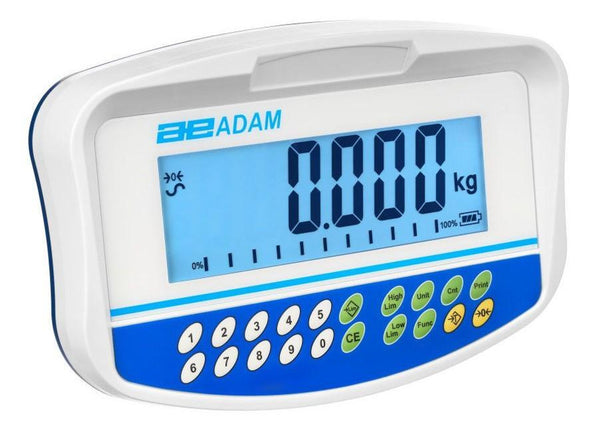

Adam Equipment GK-S Digital Indicator
The Adam Equipment GK-S digital indicator features a color changing backlight that clearly indicates if the sample is above, below, or at an acceptable weight. The display also shows a capacity tracker to help prevent overload damage. Adam GK-S housing, display, and keypad are all sealed to protect from damage and to make it easy to clean. Connect GK-S to any Adam platform scale to perform applications such as parts counting, percentage weighing, and checkweighing.
Features
- Color-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Simple 5 button operation
- Audible alarm for checkweighing
- Sealed housing, display, and keypad for protection and easy cleaning
- Visible capacity tracker to prevent overloads
- Freely selected parts counting samples
- Programmable backlight settings for on, off and during weighing
- Preset tare function for repetitive weighing processes
- Zero tracking feature to ensure scale returns to zero
- Selectable digital filtering for stability
- Programmable power off feature to conserve energy
Applications
- Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
- Check Counting
- Net Total Weighing
- Accumulation
5 Year Manufacturer's Limited Warranty
Technical specification
Model
GK-S
UPC: 840886112677
Metrology
-
Capacity
- Selectable
- Selectable
-
Readability
- Selectable
- Selectable
-
Internal Counting Resolution
- 1:1,600,000
- 1:1,600,000
General Specifications
-
Weighing Units
- g, kg, lb, lb:oz, oz
- g, kg, lb, lb:oz, oz
-
Stabilisation Time
- 2
- 2
-
Interface
- Optional USB, RS-232
- Optional USB, RS-232
-
Calibration
- External calibration
- External calibration
-
Display
- Backlit LCD with capacity tracker with 1.6" / 40mm high digits
- Backlit LCD with capacity tracker with 1.6" / 40mm high digits
Power
-
Power Supply
- AC adapter / Optional internal rechargeable battery
- AC adapter / Optional internal rechargeable battery
-
Battery type
- Alkaline
- Alkaline
Operating Conditions
-
Operating Temperature
- -10° to 40°C / 14° to 104°F
- -10° to 40°C / 14° to 104°F
Product Information
-
Construction
- ABS plastic
- ABS plastic
-
Net Weight
- 1.1kg
- 1.1kg
Dimensions
-
Overall dims
- 9.1"x11.8"x8.3" / 230x300x210mm
