Flight Dental Systems EM-9001 Electric Handpiece Motor (Model: EM-9001 and EMB-9002)

Please note that customers for international transactions will be responsible for import taxes, clearance, and duty taxes.

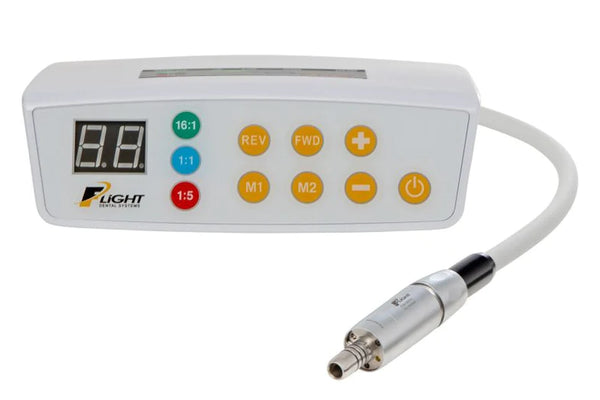

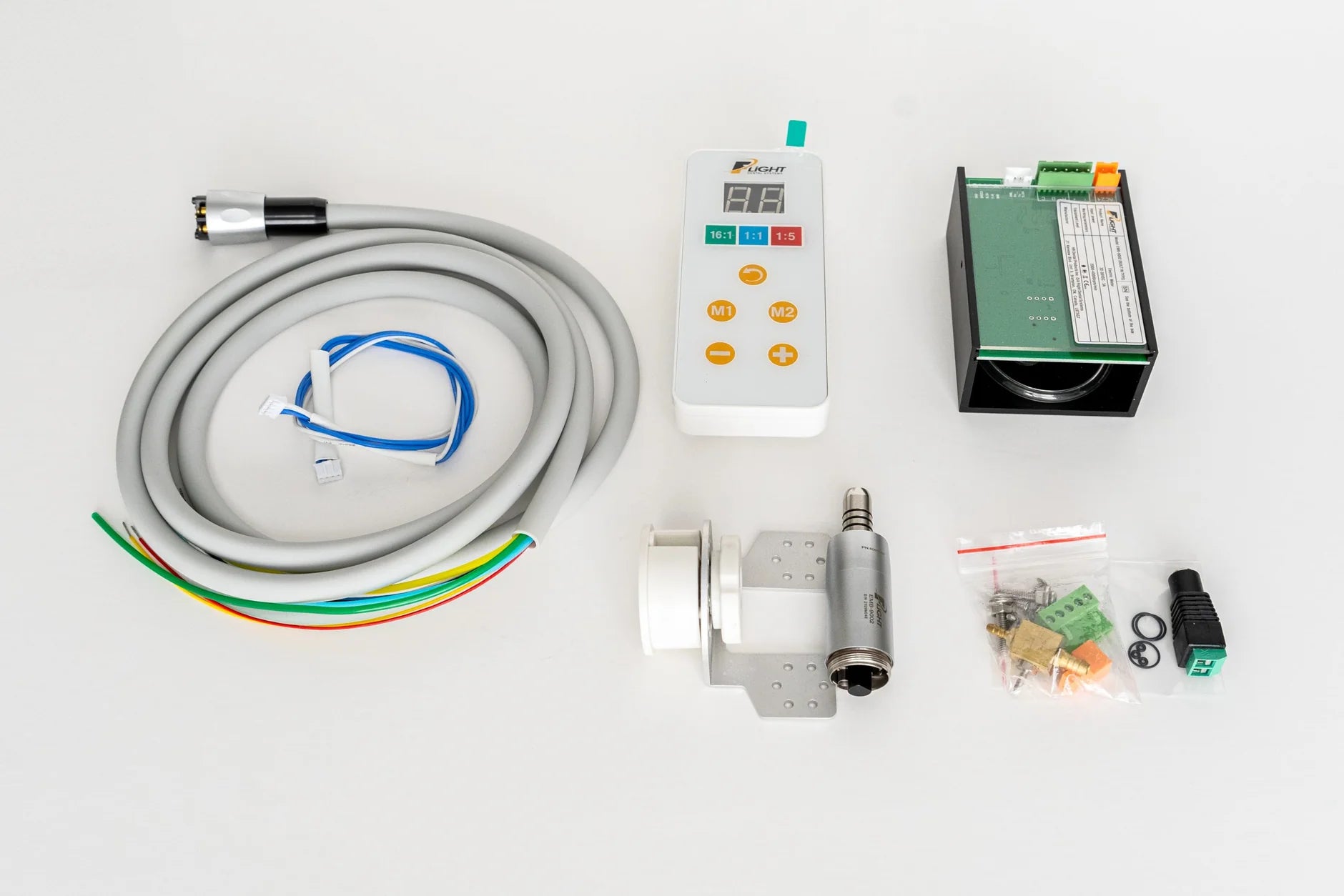

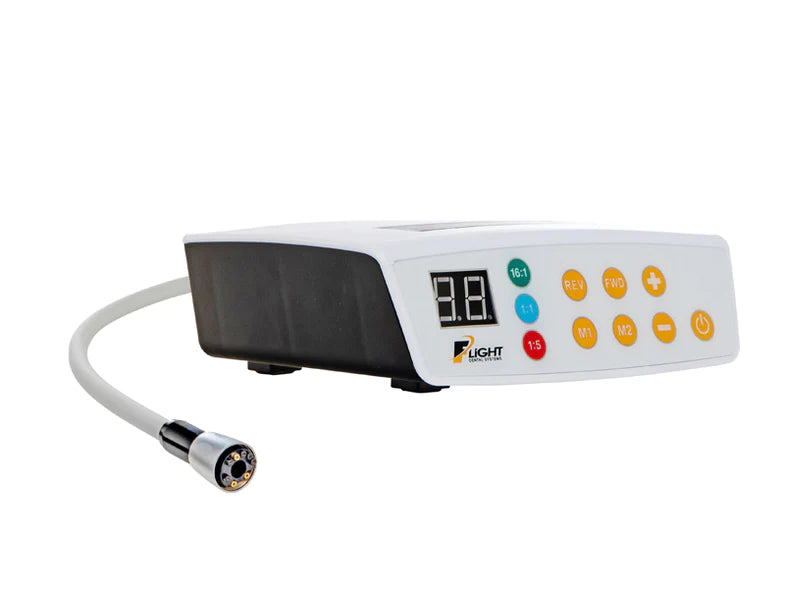

The Flight Electric Motor System is a light weight and easy to use electric motor system. It is available in both a tabletop version and a built in version featuring a light weight yet powerful electric motor that is able to generate 3.4Ncm of torque with forward and reverse function.

The LED light system is bright and long lasting providing excellent illumination coupled with your fiber optic contra angle handpiece.

The unit comes with 3 preset features for 16:1, 1:1 and 1:5 allowing it to replace low and high speed air driven handpieces and eliminating the concern for aerosolized molecules during highspeed handpiece use with air driven handpieces.

Features and Benefits

• Consistent Torque and controllable Speed
• Less Aerosol Production from Handpiece (No Aerosolized Water molecules)
• Better Cutting for Crowns
• Replaces both High and Low Speed Handpieces
• Can be used for Restorative or Prophylaxis
• Lower Noise
• Higher Concentricity – Better Cutting Margins
• Lightweight Motor
• High Torque – 3.4N
• Forward and Reverse Function
• Pre-programmed Settings
• 1:1 Ratio (Lowspeed),
• 1:5 Ratio (Highspeed)
• 16:1 Ratio (Endo)

SPECFICATIONS
Speed : 2,000 – 40000 rpm
Power : 32VDC – 3A
Torque : 3.4Ncm
Weight : 67g (micromotor only)
Dimensions of Motor : ø22 x L71mm

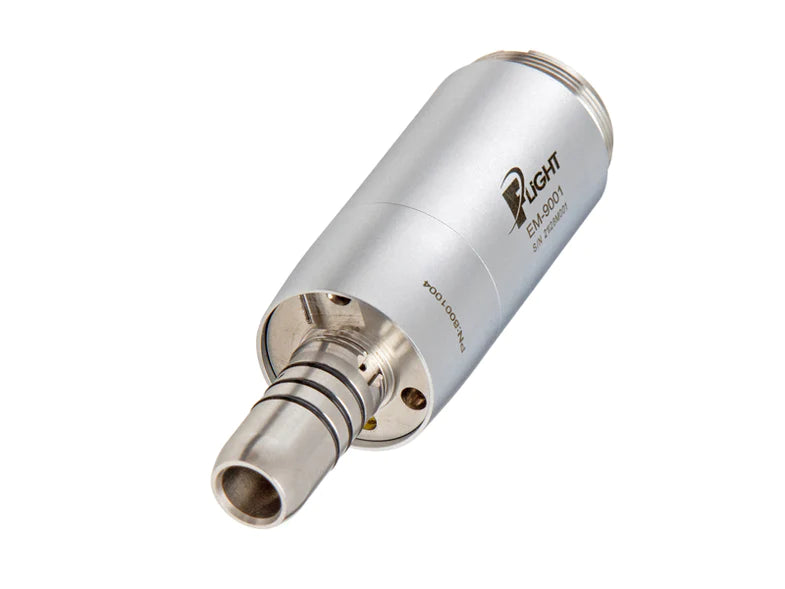

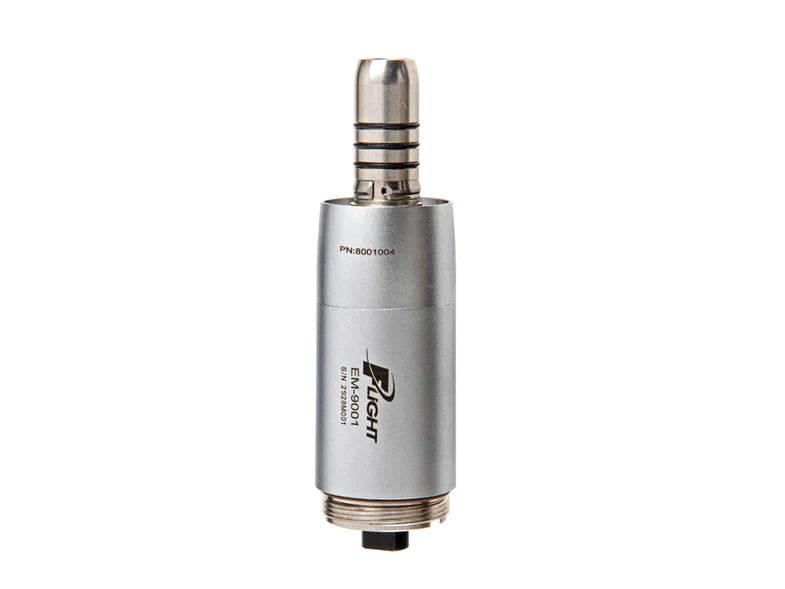

Motor Type : Brushless Micromotor

PROGRAMMED SETTINGS

Contra Angle Ratio : 16:1
Speed Range (RPM) : 100 to 2500
Speed Displayed :

• 1-25
• 1 refers to 100 rpm
• 2 refers to 200 rpm

Contra Angle Ratio : 1:1
Speed Range (RPM) : 2000 to 40,000
Speed Displayed :

• 2-40
• 2 refers to 2000rpm
• 3 refers to 3000rpm

Contra Angle Ratio : 1:5
Speed Range (RPM) : 10,000 to 200,000
Speed Displayed :

• 1-20
• 1 refers to 10,000rpm
• 2 refers to 20,000rpm
