Radwag MA 50.R MOISTURE ANALYZER 50 G X 1 Mg w/Warranty
Description

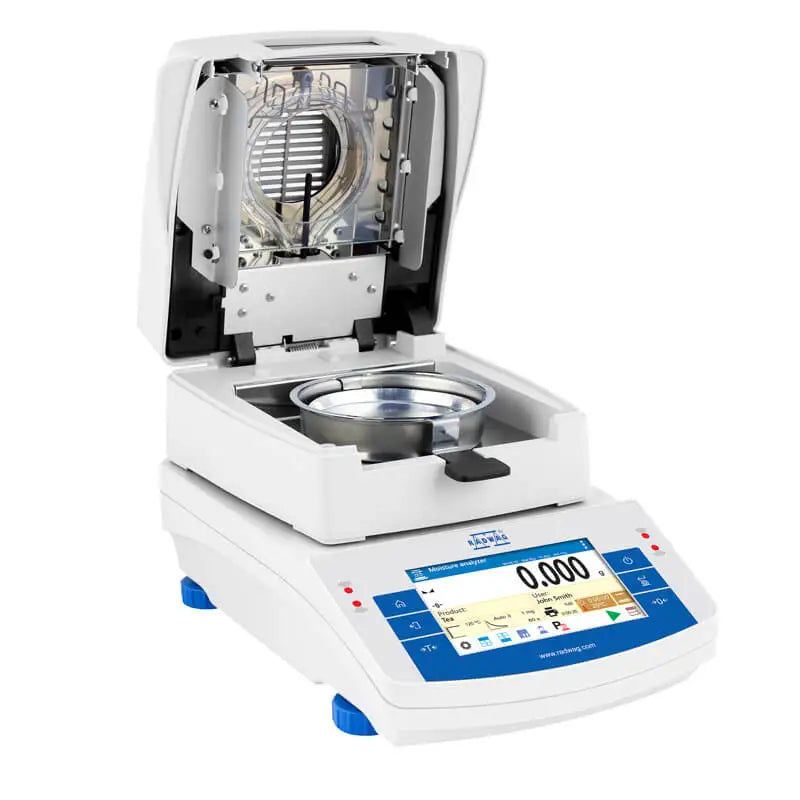

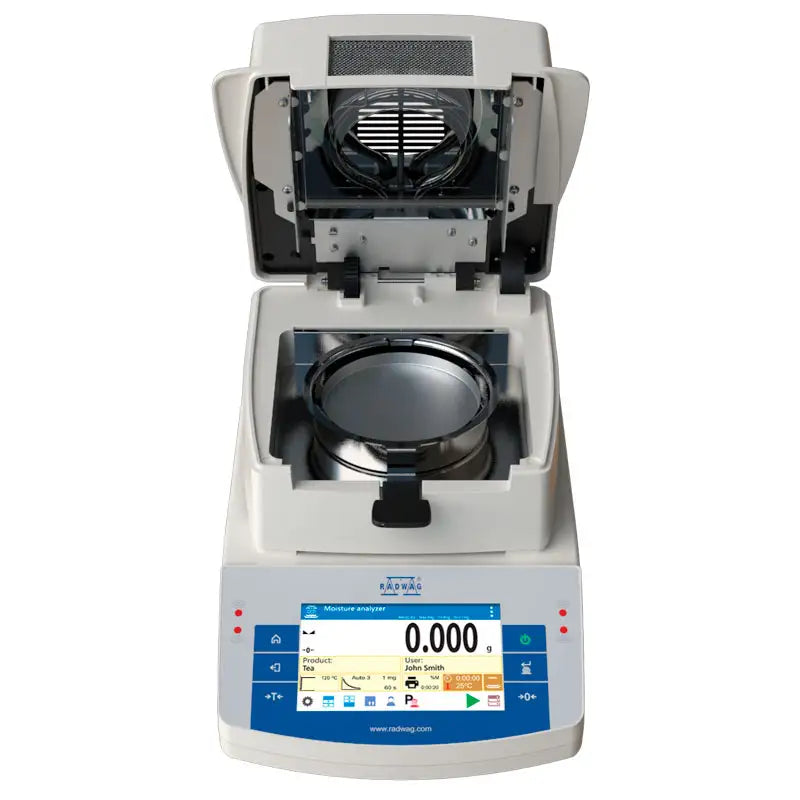

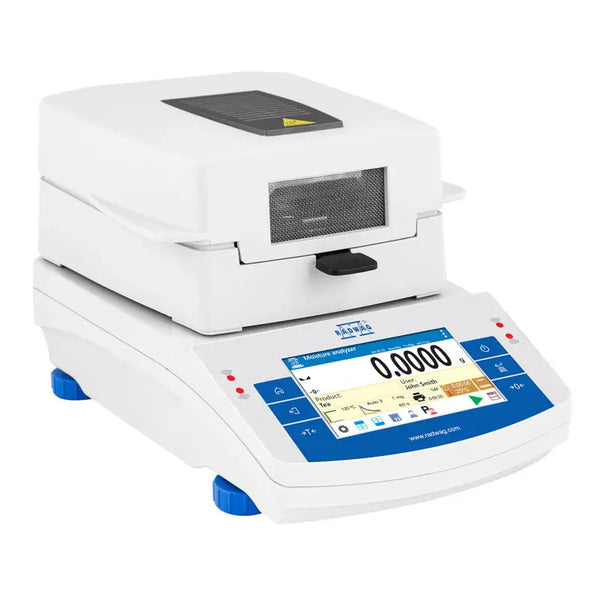

MA 50.R MOISTURE ANALYZER
OVERVIEW
Moisture analyzer is a laboratory measuring instrument intended to determine relative humidity for small samples of different materials. MA R series redefines moisture analyzers standards. This series has been equipped with brand new readable LCD display providing an extra text line for information such as supplementary messages and data, e.g. product name or tare value. The moisture analyzer, using respective pictograms, signalizes currently activated mode, computer connection and functions, both balance and service ones.
The MA R series is enriched with various interfaces: RS232, USB type A, USB type B and Wireless Connection as an option. The moisture analyzer is housed in a plastic casing.
Databases:
Information system of R series moisture analyzers is based on 6 databases, allowing many operators to operate product database comprising many samples. Collected measurements may be subjected to subsequent analysis.
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Collected data is registered in 6 databases:
- Users (up to 100 users)
- Products (up to 1000 products)
- Weighings (up to 1000 weighings)
- Tares (up to 100 tares)
- Programs (up to 100 drying programs)
- Drying process reports (up to 1000 reports)
Exchange of information within the system is performed by means of USB port on bi-directional basis. It is possible to import and export databases using memory sticks.
Direct access to information
It is possible to access functions and databases directly, using keyboard soft keys.
Database - access to databases
Function - access to basic functions
F1 and F2 - programmable function keys and menu navigation keys
Reports - access to database of drying process reports
Profile - access to parameters settings
Sample - access to products database
Datasheet
Maximum capacity [Max] |
50 g |
Readability [d] |
1 mg |
Tare range |
-50 g |
Adjustment |
external
|
Maximum sample weight |
50 g |
Heating module |
IR emitter
|
Moisture content repeatability |
+/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
|
Moisture content readability |
0.001%
|
Drying temperature range |
max 160 °C |
Leveling system |
manual
|
Display |
LCD (backlit)
|
Protection class |
IP 43
|
Weighing pan dimensions |
ø90, h= 8 mm |
Packaging dimensions |
476×381×346 mm |
Net weight |
5 kg |
Gross weight |
6 kg |
Communication interface |
RS232¹, USB-A, USB-B, Wi-Fi®
|
Power supply |
100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz
|
Power consumption |
4 W
|
Heating module power |
450 W
|
Operating temperature |
+10 — +40 °C |
Drying method |
4 drying profiles (standard, fast, step, mild)
|
Finish mode |
4 modes (automatic, manual, time-defined, user-defined)
|
Additional functions |
sample traceability
|
Maximum sample height |
20 mm |
