RADWAG MAS.1.82/220.Y WEIGHING MODULE, 220 G X 0.1 MG, INTERNAL CAL, DUAL RANGE
OVERVIEW

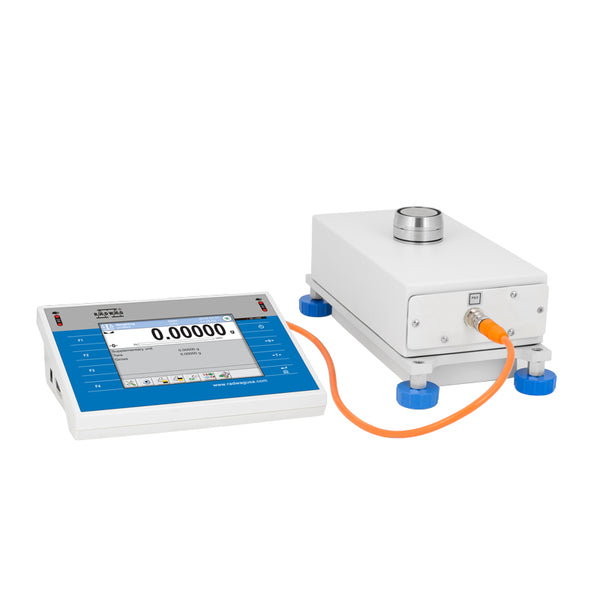

Radwag MAS.1.82/220.Y is designed to integrate into your current measurement system due to its small footprint. Getting a clear readout of measurements is simple via the included Y touch panel featuring a 5.7" LCD backlit display. Communication to peripherals is possible through the display's numerous interfaces: 2×RS232, 2×USB type A, Ethernet, 4×IN, 4×OUT, and Wi-Fi. The module operates on the basis of electromagnetic force converter. Internal calibration guarantees a consistent weighing standard between samples as is performed via internal calibration mass. Four leveling feet help to stabilize the module and ensure proper measurements.
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Features
- LCD touch panel
- 2×RS232, 2×USB type A, Ethernet, 4×IN, 4×OUT, and Wi-Fi communication ports
- Aluminum construction
- Dedicated power supply
- Overload protection
- Internal calibration
- Multiple hardware configurations
- IP 54
3 year manufacturer's limited warranty
| Maximum capacity [Max] |
82 / 220 g |
| Minimum load |
1 mg |
| Readability [d] |
0.01 / 0.1 mg |
| Tare range |
-220 g |
| Minimum weight (USP) |
40 mg |
| Minimum weight (U=1%,k=2) |
4 mg |
| Repeatability (Max) |
0.1 mg |
| Repeatability (5% Max) |
0.02 mg |
| Linearity |
±0.06 / 0.2 mg |
| Stabilization time |
6 / 2 s |
| Display |
5.7” Resistiv-Farb-Touchscreen
|
| Weighing pan dimensions |
ø42 mm |
| Device dimensions |
289×143×125 mm |
| Packaging dimensions |
650×340×315 mm |
| Net weight |
4.7 kg |
| Gross weight |
6.7 kg |
| Protection class |
IP 54
|
| Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
|
| Power supply |
100 – 240 V AC 50/60 Hz
|
| Operating temperature |
+10 — +40 °C |
| Relative humidity |
40% — 80% |
