Radwag MWSH 6000 WEIGHING MODULE 6000 G X 0.01 G w/Warranty

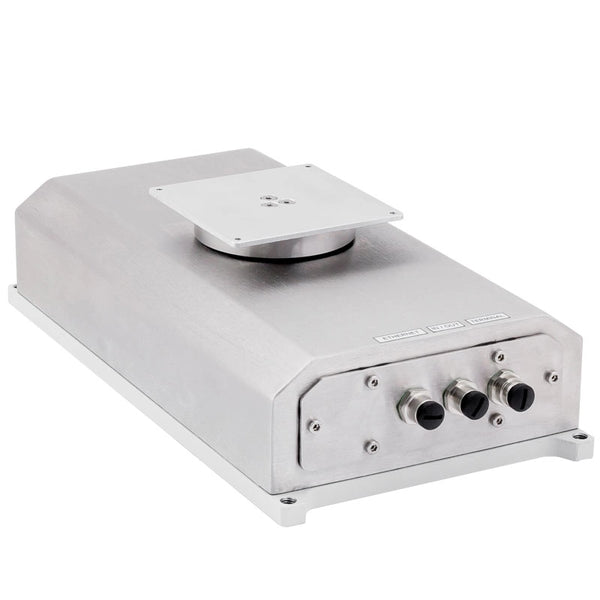

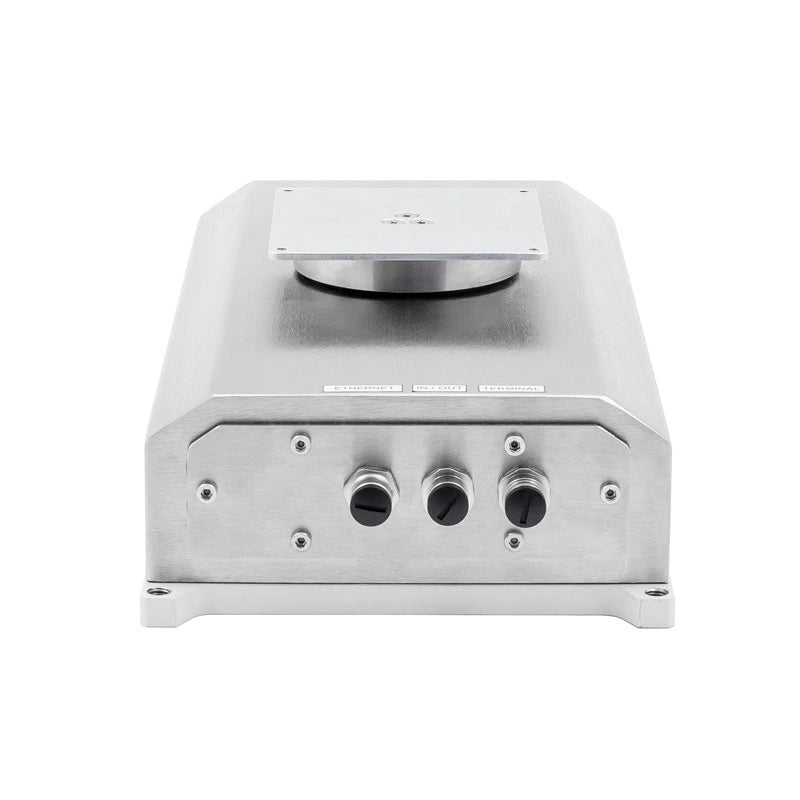

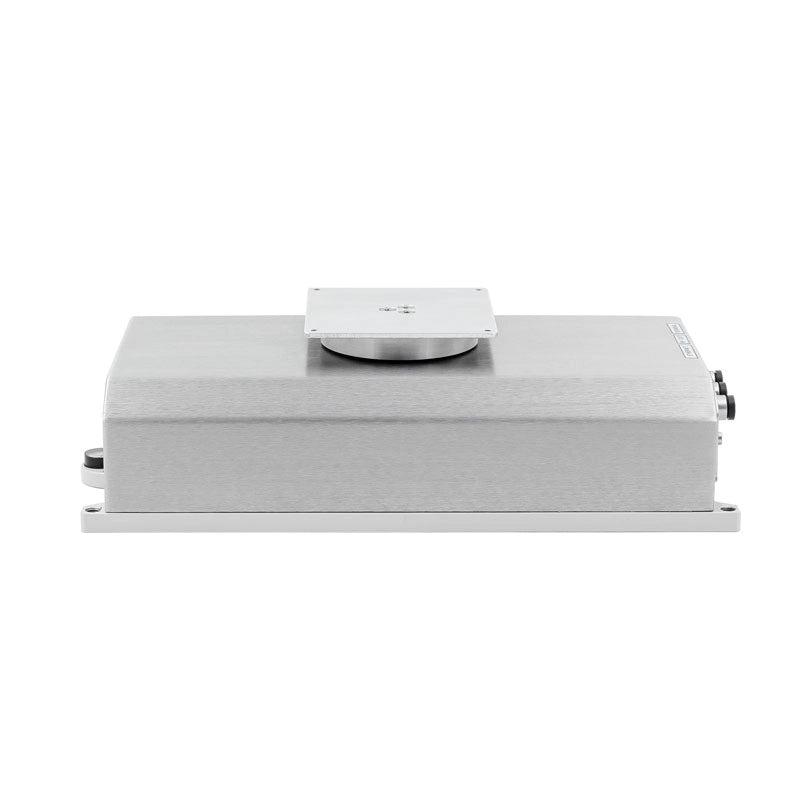

MWSH 6000 WEIGHING MODULE
OVERVIEW
Operation of professional MWSH electromagnetic high resolution modules is based on an electromagnetic digital converter.
The MWSH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed.
Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Features:
- Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65),
- Reading unit of 0,01 g,
- Ease of adaptation to required usage area,
- Internal adjustment,
- Cooperation with HY10 terminal,
- Interfaces: RS232, RS485, Ethernet, 2 IN/2 OUT.
Metrological parameters
Physical parameters
Communication interface
Electrical parameters
Environmental conditions
Construction
| Maximum capacity [Max] |
6000 g |
| Minimum load |
500 mg |
| Preload range |
600 g |
| Readability [d] |
0.01 g |
| Tare range |
-6000 g |
| Repeatability |
15 mg |
| Linearity |
±30 mg |
| Stabilization time |
1.5 s |
| Adjustment |
internal (automatic)
|
| Protection class |
IP 65
|
| Weighing pan dimensions |
100×100 mm |
| Device dimensions |
336×175×96 mm |
| Packaging dimensions |
580×335×280 mm |
| Communication interface |
RS232, RS485, Ethernet, 2 IN / 2 OUT, PROFIBUS (option), PROFINET (option)
|
| Power supply |
100 – 240 V AC 50/60 Hz
|
| Operating temperature |
+10 — +40 °C |
| Relative humidity |
15% — 80%
|
| Housing |
aluminum, stainless stee |
