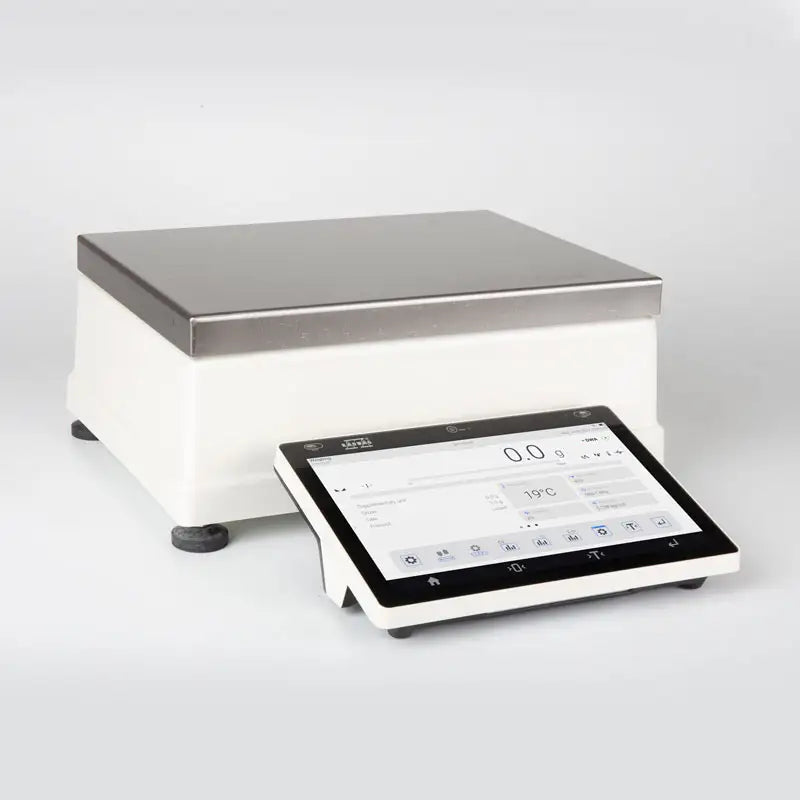

Radwag PM 25.5Y Precision balances ELLIPSIS 5Y SERIES
OVERVIEW
The Radwag ELLIPSIS Series is a new scale from RADWAG. Its interface has been designed to meet the requirements of the modern user, who expects the device to be multifunctional, ergonomic and aesthetically pleasing.

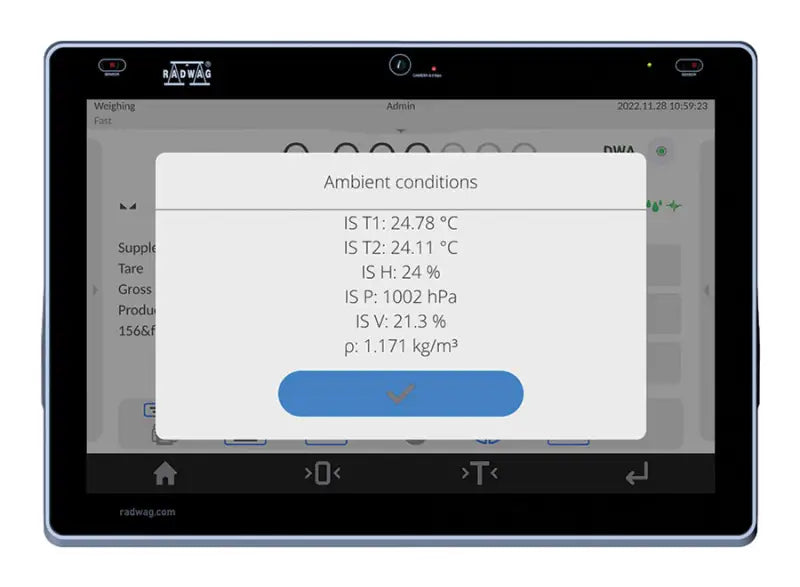

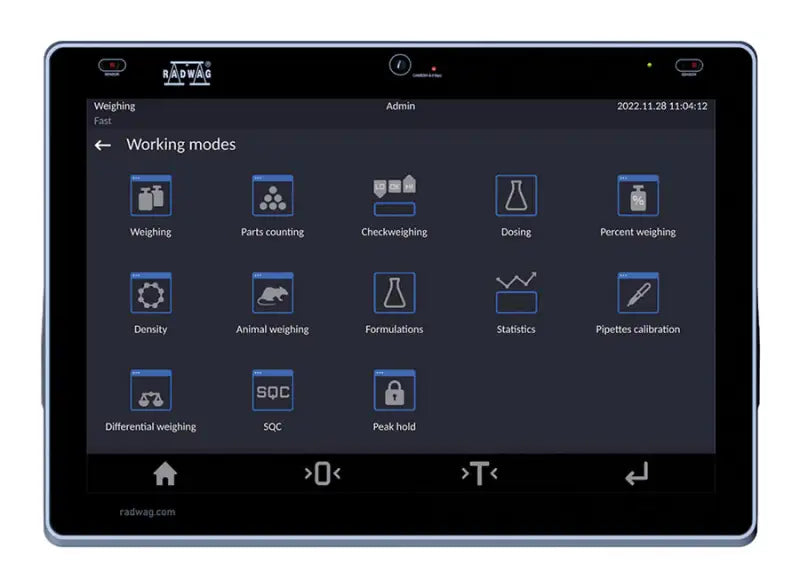

The radwag scales have different specifications in terms of display, readability and other applications which can meet and exceed expectations. Depending on the user’s preference, it can have a light or dark theme. The operating system of radwag scales is configurable and the user can customize the home screen by adding widgets, for example, an environmental conditions widget or a statistics widget. Features of the radwag Ellipsis series scales: Features of radwag Ellipsis series scales: Thanks to the hotspot, you can use the scale on any device previously connected to it. It can be a smartphone, tablet or computer. Plus of the radwag Ellipsis series scales. |
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Maximum capacity [Max] |
20 kg |
Minimum load |
0.5 g |
Readability [d] |
0.01 g |
Verification scale interval [e] |
-
|
Tare range |
-20 kg |
Minimum weight (USP) |
8.2 g |
Minimum weight (U=1%,k=2) |
0.82 g |
Repeatability (Max) |
0.015 g |
Repeatability (5% Max) |
0.004 g |
Linearity |
±0.03 g |
Stabilization time |
3 s |
Adjustment |
internal (automatic)
|
OIML Class |
-
|
Leveling system |
semi-automatic - LevelSENSING
|
Display |
10″ touchscreen
|
Weighing pan dimensions |
200×185 mm |
Packaging dimensions |
520×520×280 mm |
Net weight |
12 kg |
Gross weight |
14.2 kg |
Communication interface |
USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
|
Operating temperature |
+10 — +40 °C |
