RADWAG PM 35.C32 High Capacity Precision Balance OIML Class II 35 kg x 0.1 g
OVERVIEW

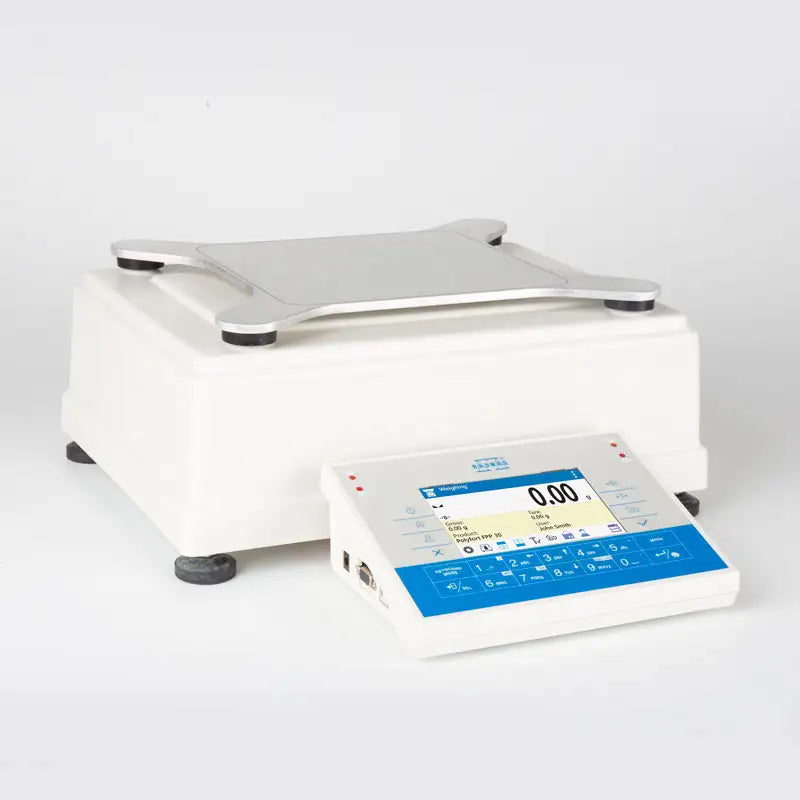

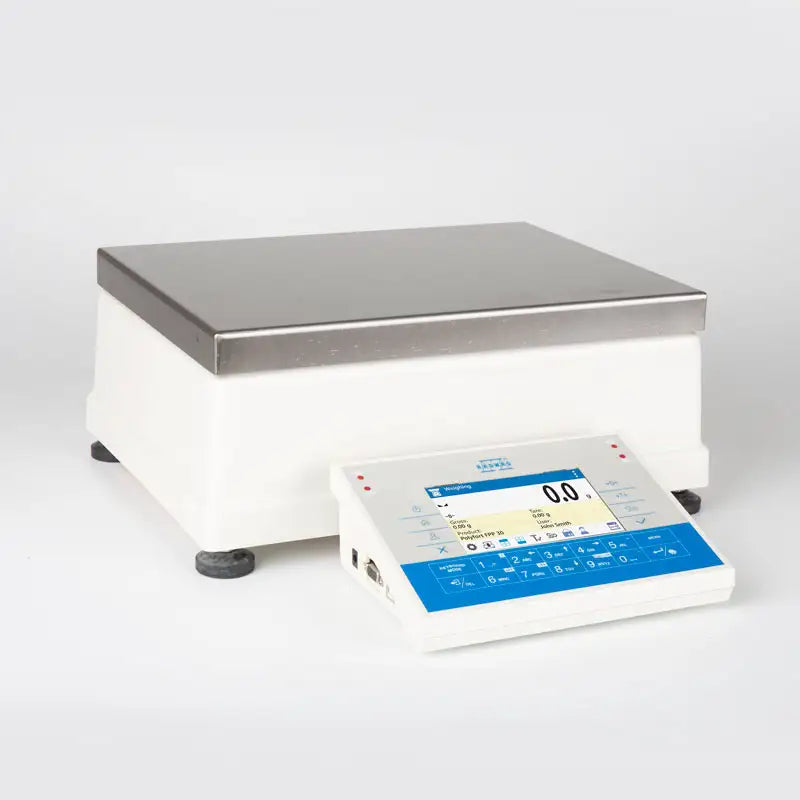

Radwag PM 35.C32 Precision Balance
The Radwag PM C32 precision balances have a large 13.67" x 10.2" weighing pan and are designed for high capacity applications where high accuracy and precision are critical. PM balances are made with Radwag's patented MonoBLOCK weighing technology. This technology results in a balance that remains accurate over longer periods of time and is resistant to changes in ambient conditions. The built in 4 point overload protection helps protect sensitive internal components from damage in cases where the balance is accidentally overloaded. PM C32 balances have multiple communication ports for communicating with external devices such as printers and computers. Standard weighing applications in addition to general weighing include parts counting, checkweighing, percent weighing, and Newton Unit Measurement. The digital indicator features a large 5" color display and 22 key keypad. The C32 weighing terminal has databases for users, products, weighments, packagings, and customers.
Features
- MonoBLOCK weighing technology
- External calibration
- IP43 rating for digital indicator
- 2 x RS 232, 1 x USB-A, 1 x USB-B, 1 x Ethernet
- Large stainless steel weighing pan
- ABS Plastic indicator housing
- Multiple weighing units (g, kg, ct, lb, oz, N)
Weighing Modes
- Weighing
- Checkweighing
- Parts counting
- Percent weighing
- Newton Unit Measurment
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Metrological parameters
Physical parameters
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max] |
35 kg |
Minimum load |
5 g |
Preload range |
3.5 kg |
Readability [d] |
0.1 g |
Verification scale interval [e] |
1 g |
Tare range |
-35 kg |
Minimum weight (USP) |
82 g |
Minimum weight (U=1%,k=2) |
8.2 g |
Repeatability (Max) |
0.1 g |
Repeatability (5% Max) |
0.04 g |
Linearity |
±0.3 g |
Stabilization time |
3 s |
Adjustment |
internal (automatic)
|
OIML Class |
II
|
Leveling system |
manual
|
Display |
5” graphic colour
|
Protection class |
IP 43
|
Weighing pan dimensions |
350×260 mm |
Packaging dimensions |
520×520×280 mm |
Net weight |
11 kg |
Gross weight |
13.2 kg |
Communication interface |
2×RS232, USB-A, USB-B, Ethernet, Wi-Fi®
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Operating temperature |
+10 — +40 °C |
