RADWAG PS 6100.R2.M Precision Balance 6100 g x 0.01 g
Description

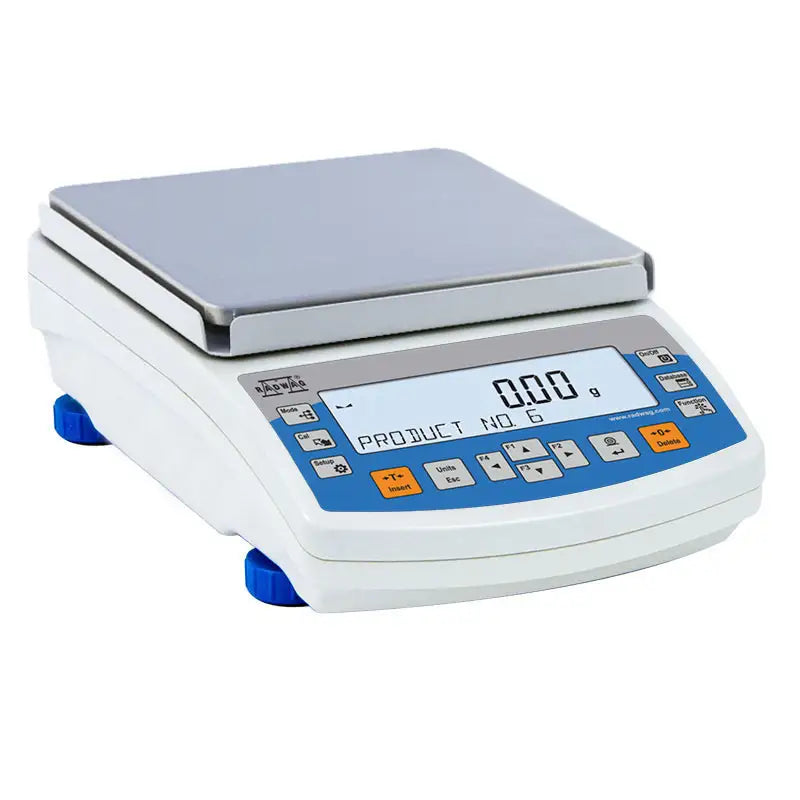

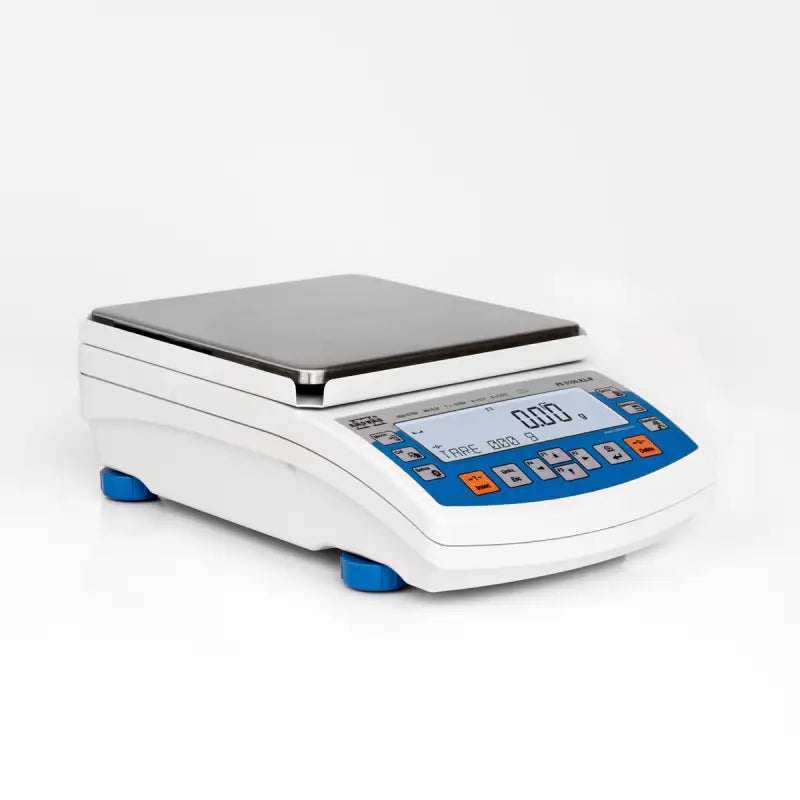

Radwag PS 6100.R2.M Precision Balance
Radwag PS 6100.R2.M precision balances is an affordable, precise scale that places focus on proper and extensive data storage. The R2 series is designed to output fast and precise measurements, which can be easily recorded and recalled through the balance's ALIBI memory system. ALIBI allows for storing up to 100,000 weighment records that can be saved at the press of a key. USB access makes data transfer from the balance to other devices possible. Data is registered in 5 databases (Users, Products, Weighments, Tares, and AILBI memory) and can be accessed via the clear menu and practical design of the LCD front display. Customization of the display menus further caters to your exact measuring needs. The included software enables integration with a number of peripherals, including barcode scanners and label printers. Two IR sensors inside of the display can be programmed to perform specific hands free actions, such as taring. MonoBLOCK technology allows for a readability of 0.01 g at weights up to 10 g.
Features

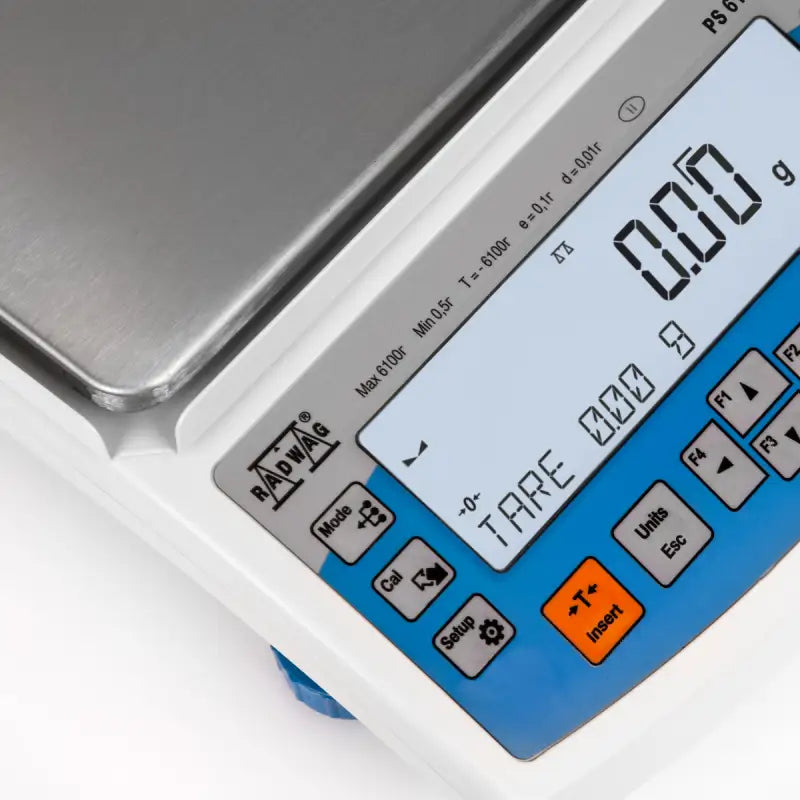

- Large 5.7" color touchscreen with customizeable home menu
- Internal Calibration
- Four leveling feet
- ALIBI memory banks; space to save 100,000 measurements
- 5 databases to store data
- Additional information line below weight readout
- 4 programmable keys

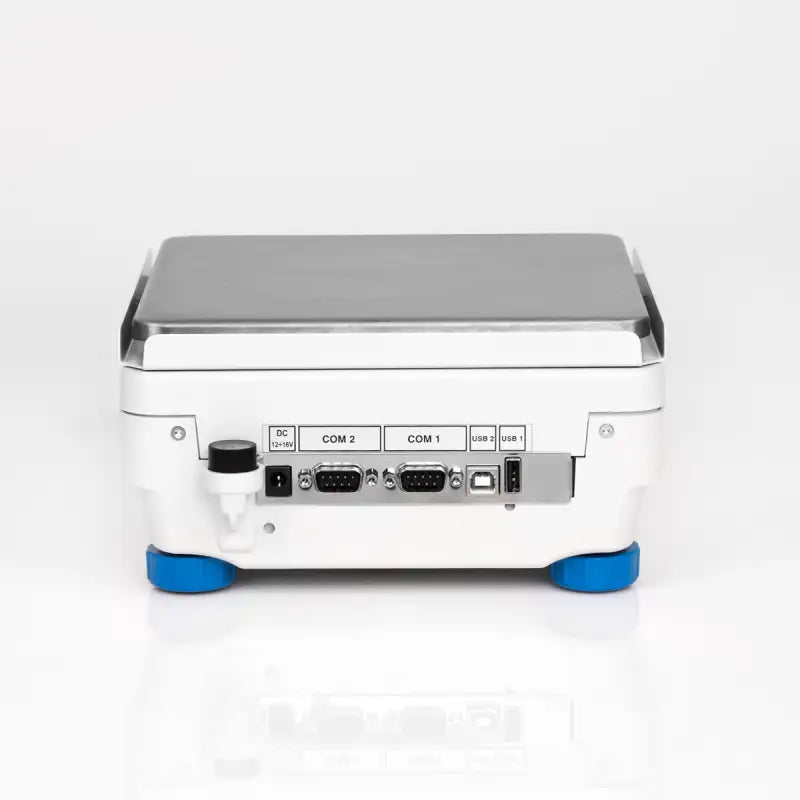

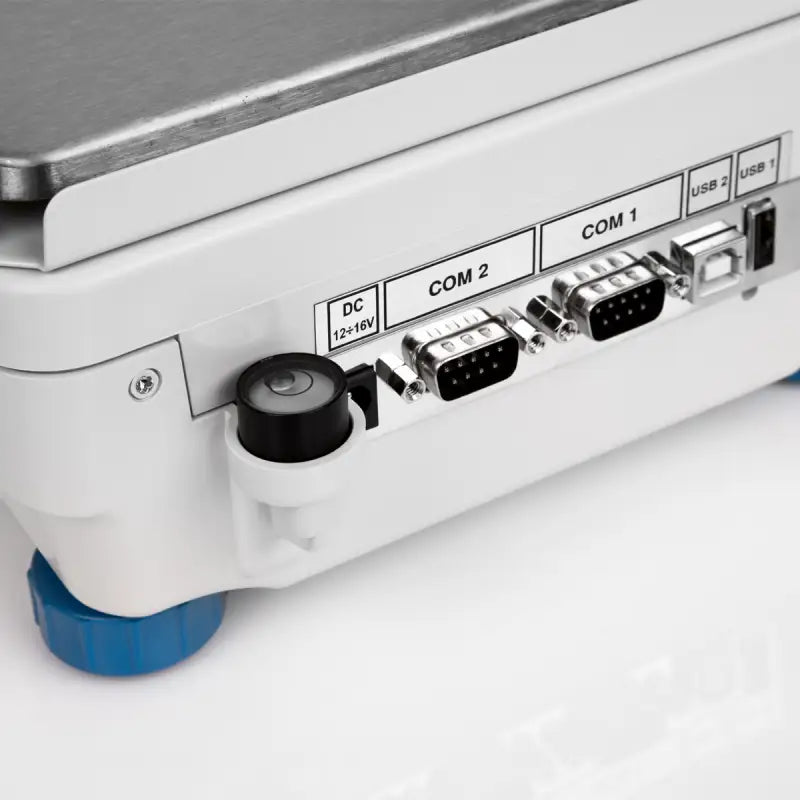

- Expanded communication port includes 2 x USB, RS232 ,Ethernet and 4 inputs/4 outputs
- Automatic internal calibration with internal mass standard
- GLP/GMP compliant printing formats
Weighing Applications
- Weighing
- Checkweighing
- Animal weighing / Dynamic weighing
- Under hook weighing
- Parts counting
- Percent weighing
- Dosing
- Peak hold
- Density determination
- Statistics
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Maximum capacity [Max] |
6100 g |
Minimum load |
0.5 g |
Readability [d] |
0.01 g |
Verification scale interval [e] |
0.1 g |
Tare range |
-6100 g |
Minimum weight (USP) |
10 g |
Minimum weight (U=1%,k=2) |
1 g |
Repeatability (Max) |
0.008 g |
Repeatability (5% Max) |
0.005 g |
Linearity |
±0.02 g |
Stabilization time |
1.5 s |
Adjustment |
internal (automatic)
|
OIML Class |
II
|
Leveling system |
manual
|
Display |
LCD (backlit)
|
Protection class |
IP 43
|
Delivery components |
Balance, weighing pan, weighing pan shield, power supply
|
Weighing pan dimensions |
195×195 mm |
Device dimensions |
333x206x107 mm |
Packaging dimensions |
470×380×336 mm |
Net weight |
4.5 kg |
Gross weight |
6.1 kg |
Communication interface |
2×RS232¹, USB-A, USB-B, Wi-Fi® (option)
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Operating temperature |
+10 — +40 °C |
Storage temperature |
-20 — +50 °C |
Relative humidity |
40% — 80% |
