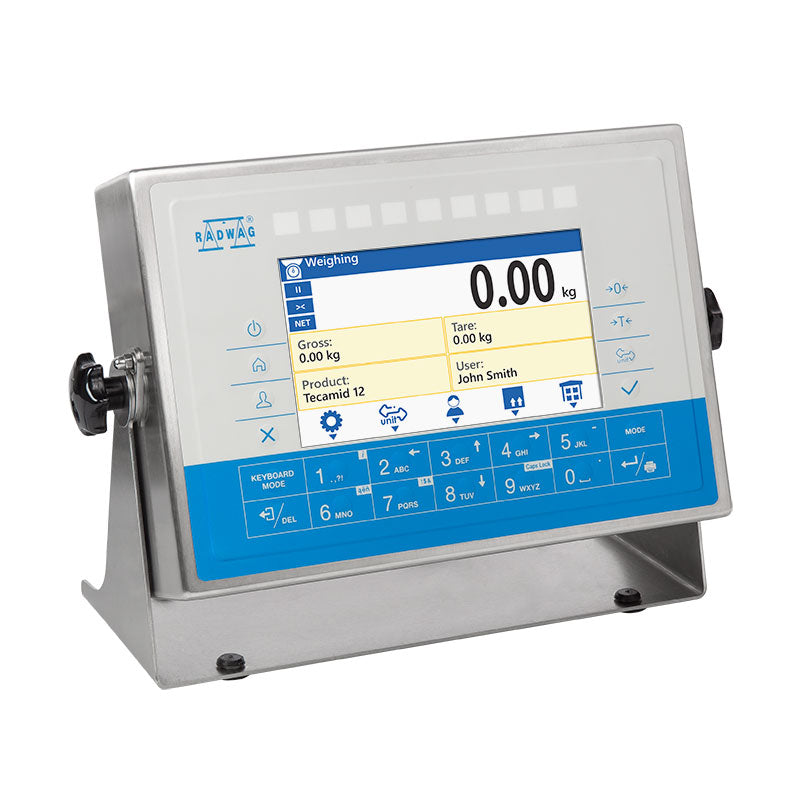

RADWAG PUE HX7 Weighing Terminal
Description
PUE HX7 terminal is a constructional component of industrial multifunctional load cell scales, equipped with either one or numerous load cells. It is based on the latest solutions and an advanced computing platform. Versatile terminal’s software will satisfy even the most demanding users and system integrators. The basic version of the terminal features a vast range of communication interfaces, which range can additionally be expanded.
Housing
The housing, made of AISI 304 stainless steel, ensures high ingress protection, IP66 / IP68. The terminal is equipped with 7” colour LCD display and membrane keyboard. Ease of operation, clear menu and intuitive information arrangement on the display guarantee comfort of operation. Hermetic communication interface connectors are located on the back side of the housing. Stable mount bracket enables to mount the terminal either on a flat horizontal surface or on the wall. The device tilt can be easily adjusted.
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Weighing Platform Operation
Basic version of the terminal supports 1 analog weighing platform. The possibility to install an additional weighing module enables to support 2 weighing platforms.
Diodes
Diode bar graph is located on the top of the operation panel and consists of 9 red and green diode fields. The terminal features 3 working modes: 'linear', 'weighing thresholds signalling' and 'checkweighing'. The bar graph significantly increases the comfort of operation during piecework in food industry when fast and unambiguous presentation of product mass deviation against the declared min and max values is crucial.
Datasheet
| OIML Class |
III
|
| Maximum quantity of verification units |
6000 *
|
| Minimum volatge per verification unit |
0.4 µV
|
| Maximum voltage per verification unit |
3.25 µV
|
| Minimum load cell impedance |
50 Ω
|
| Maximum load cell impedance |
1200 Ω
|
| Load cell excitation voltage |
5V DC
|
| Maximum increase of signal |
19.5 mV
|
| Connection of load cells |
4 or 6 wires + shield
|
| Display |
7” graphic colour
|
| Device dimensions |
340×231×120 mm |
| Packaging dimensions |
370×310×220 mm |
| Net weight |
4.7 kg |
| Gross weight |
4.86 kg |
| Protection class |
IP 66 / IP 68
|
| Keypad |
membrane
|
| Communication interface |
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
|
| Optional interfaces |
USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
|
| Power consumption max. |
25 W
|
| Optional power supply |
internal rechargeable battery
|
| Operation time on batteries |
max 7h
|
| Operating temperature |
-10 — +40 °C |
| Storage temperature |
-10 — +50 °C |
| Relative humidity |
10% — 80% RH no condensation
|
| Max number of platforms |
max 2 (1× standard + 1× option) |
