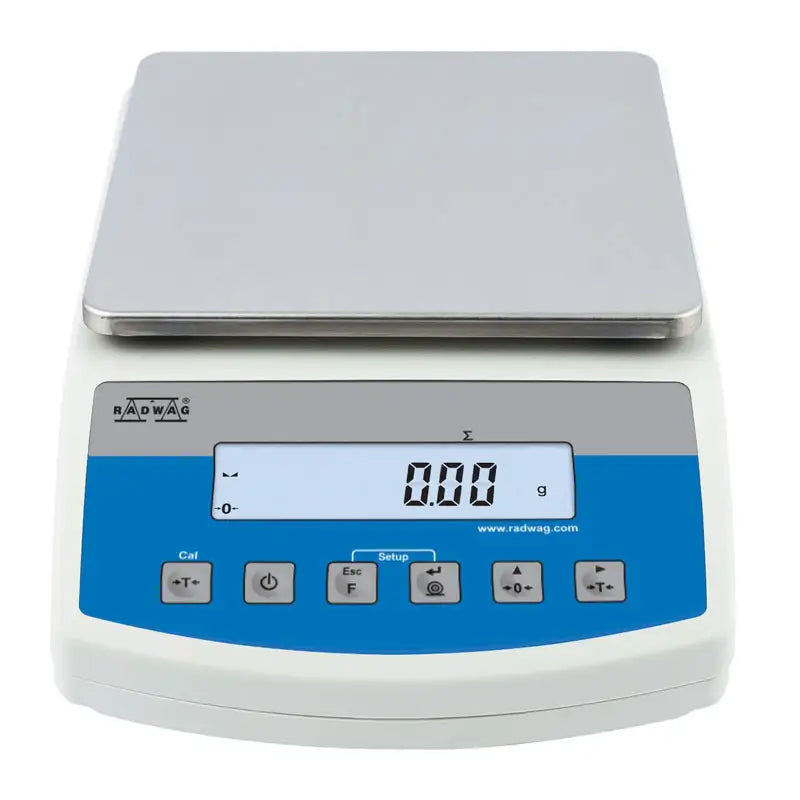

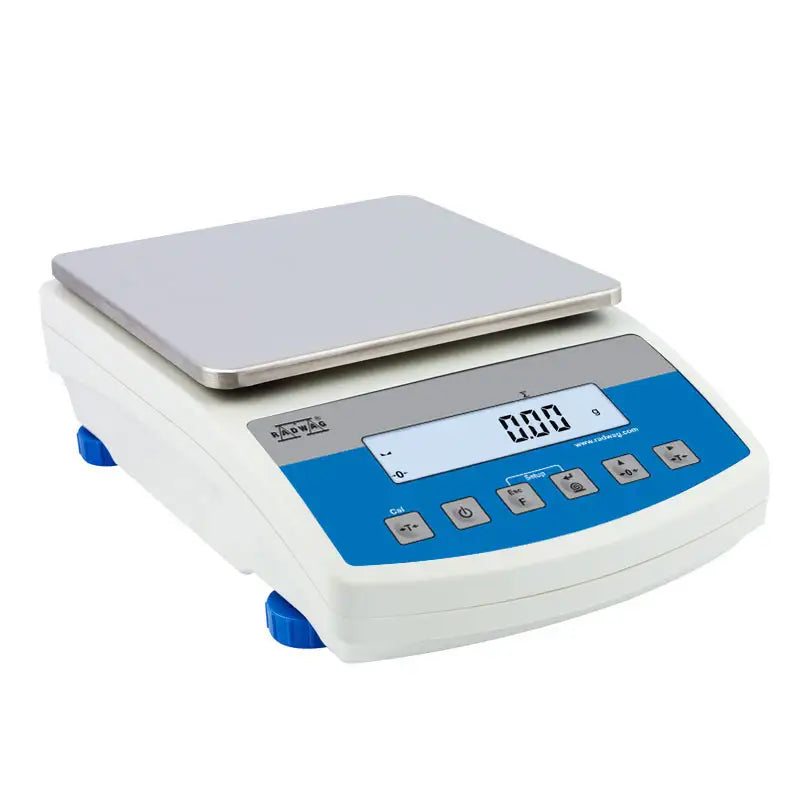

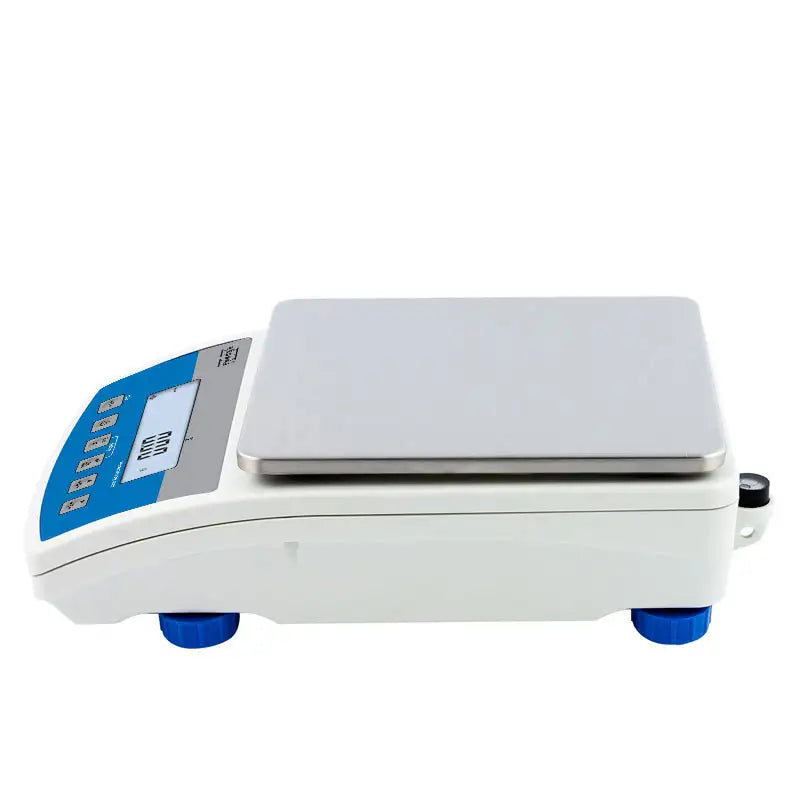

Radwag WLC 1/A2/C/2 with 4IN/4OUT Module Precision Balance, 1 KG X 0.01 G
Radwag WLC 1/A2/C/2 with 4IN/4OUT Module Precision Balance, 1 KG X 0.01 G WL-217-0040
Radwag WLC 1/A2/C/2 series precision balance provides fast and accurate measurements at an affordable price. Most sample sizes can be accommodated for with the large stainless steel weighing pan. An expanded communication port includes two RS232, USB A, and USB B connectivity to peripheral devices such as PCs and printers. Automatic internal calibration maintains a consistent weighing standard at all times to ensure the best possible results. Remote operation is possible through an internal battery so you can weigh where other scales would not be able to reach.
Features
- Multiple connectivity ports including 2 x RS232, USB A, and USB B
- Multiple weighing functions
- Automatic internal calibration
- Internal battery for remote operation
- Durable construction features ABS plastic housing and stainless steel pan
- Large bright LCD display
- 195 x 195 mm pan size
Weighing Applications
- Weighing
- Parts counting
- Percent weighing
- Max Hold
- Totalization
- Peak hold
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Maximum capacity [Max] |
1 kg |
Readability [d] |
0.01 g |
Verification scale interval [e] |
-
|
Tare range |
-1 kg |
Repeatability |
0.015 g |
Linearity |
±0.03 g |
Stabilization time |
3 s |
Adjustment |
internal (automatic)
|
Leveling system |
manual
|
Display |
LCD (backlit)
|
Protection class |
IP 43
|
Weighing pan dimensions |
195×195 mm |
Packaging dimensions |
470×380×336 mm |
Net weight |
3.6 kg |
Gross weight |
5.1 kg |
Communication interface |
2×RS232, USB-A, USB-B
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Operation time on batteries |
15 h (average time)
|
Operating temperature |
+15 — +30 °C |
Relative humidity |
10% — 85% RH no condensation
|
