RADWAG WLY 10/D2 Precision Balance 10 kg x 0.1 g
Description

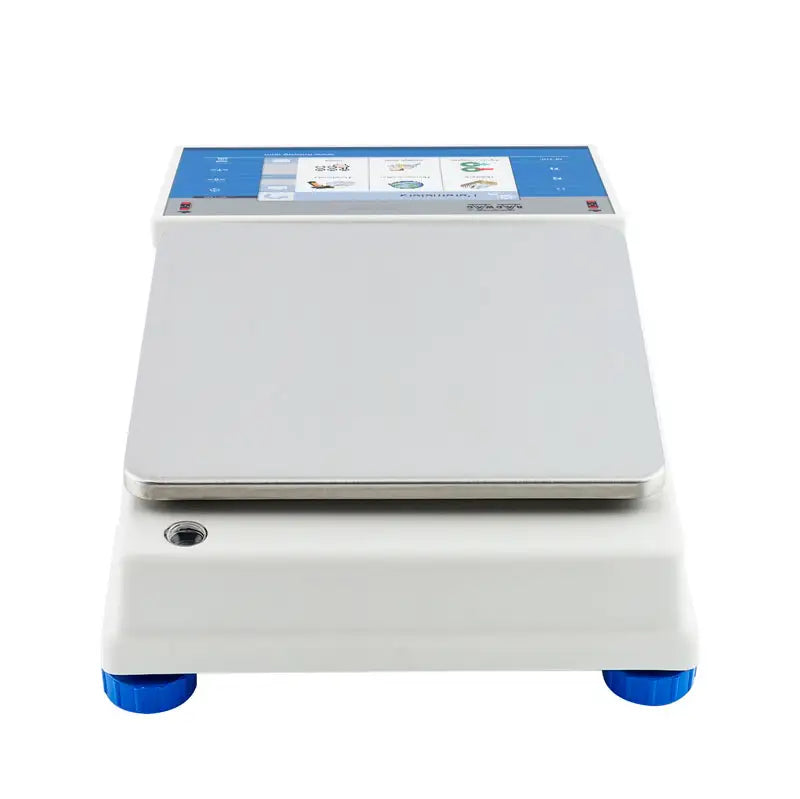

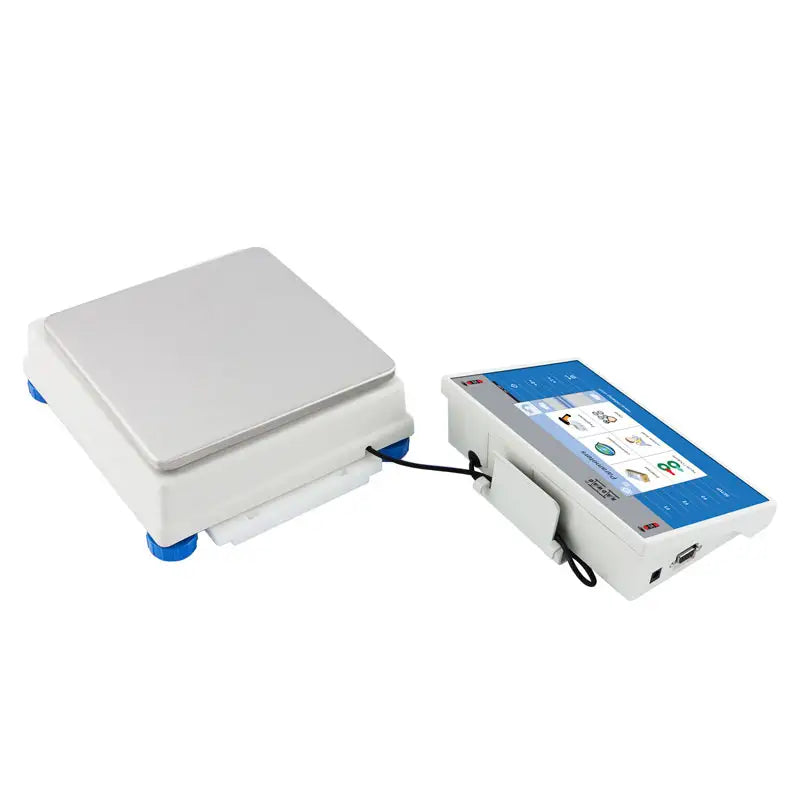

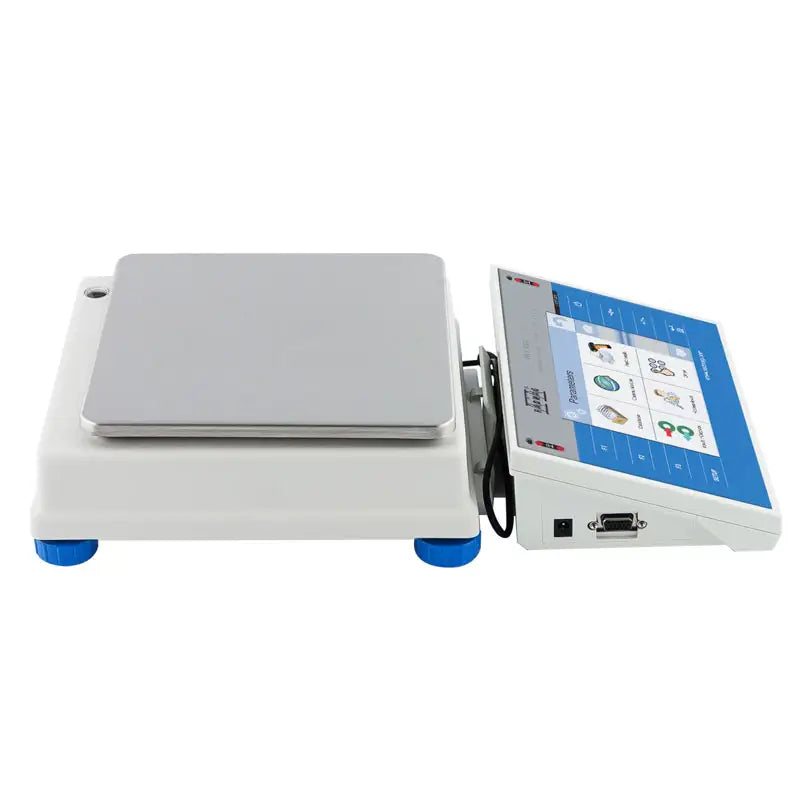

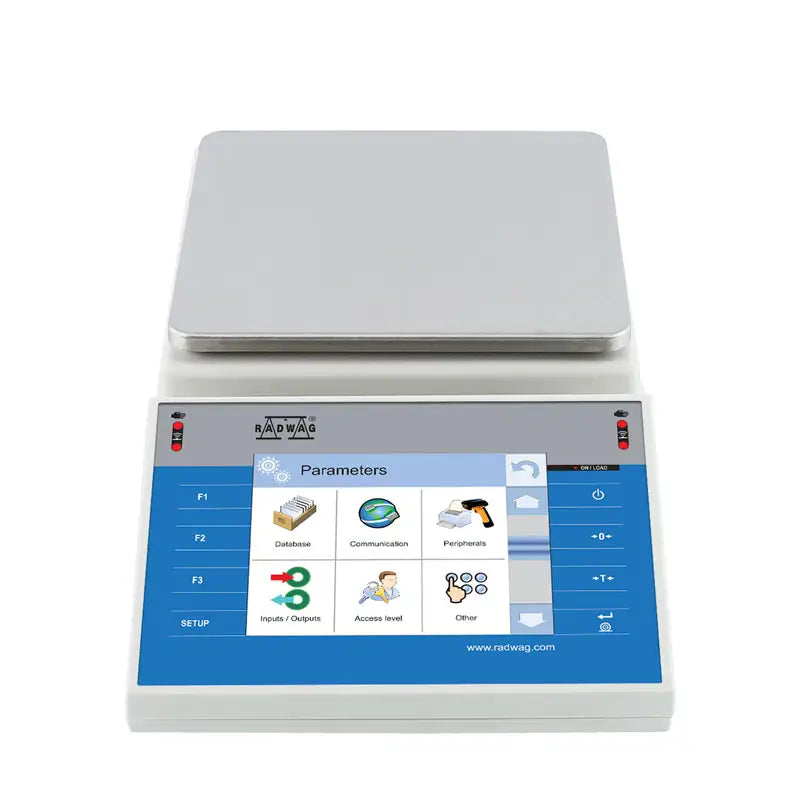

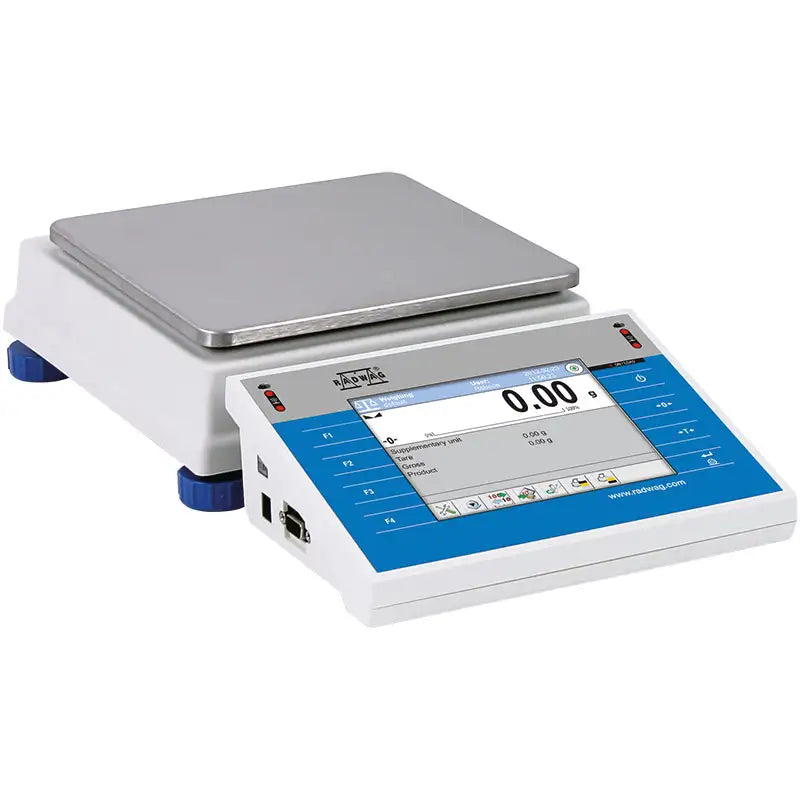

Radwag WLY 10/D2 Precision Balance
Radwag WLY 10/D2 precision balances offer a suite of features including a 5.7" color touchscreen display with customizeable home screen, four leveling feet, and a stainless steel weighing pan. The WLY series is designed to output fast and precise measurements, which can be easily recorded and recalled through the balance's ALIBI memory system. ALIBI allows for storing up to 100,000 measurements that can be saved at the press of a key. Due to standard and custom printout formats, a user can design and document practically any process in accordance with GLP/GMP requirements. The included software enables integration with a number of peripherals, including barcode scanners and label printers. Two IR sensors inside of the display can be programmed to perform specific hands free actions, such as taring.
Features
- Large 5.7" color touchscreen with customizeable home menu
- Patented LevelSENSING system ensures proper balance setup
- ALIBI memory banks; space to save 100,000 measurements
- IR sensors for hands free operation of print, tare and sensitivity adjustment
- Expanded communication port includes 2 x USB, RS232 ,Ethernet and 4 inputs/4 outputs
- Automatic internal calibration with internal mass standard
- GLP/GMP compliant printing formats
- Save data to USB device
Weighing Applications
- Weighing
- Checkweighing
- Animal weighing / Dynamic weighing
- Under hook weighing
- Parts counting
- Percent weighing
- Dosing
- Formulation
- Density determination
- Statistics
- Totalizing
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Metrological parameters
Physical parameters
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max] |
10 kg |
Minimum load |
-
|
Readability [d] |
0.1 g |
Verification scale interval [e] |
-
|
Tare range |
-10 kg |
Repeatability |
0.3 g |
Linearity |
±0.3 g |
Stabilization time |
3 s |
Adjustment |
external
|
OIML Class |
-
|
Leveling system |
manual
|
Protection class |
IP 43
|
Weighing pan dimensions |
195×195 mm |
Packaging dimensions |
500×310×150 mm |
Net weight |
2.7 kg |
Gross weight |
3.6 kg |
Communication interface |
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
|
Operating temperature |
+15 — +30 °C |
Storage temperature |
-25 - +70 °C |
Relative humidity |
10% — 85% RH no condensation |
