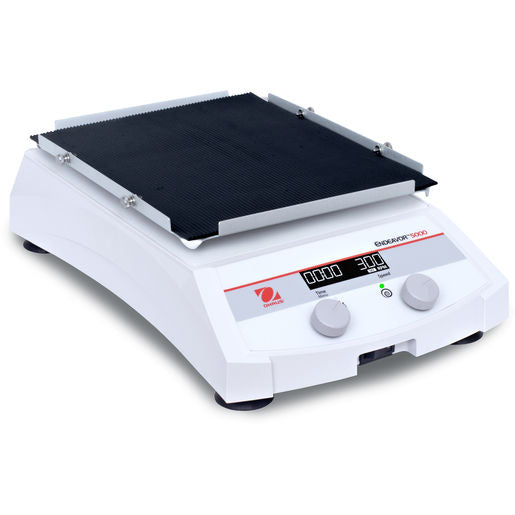

Ohaus e-E51LD0420 AM ENDEAVOR 5000 Light Duty Shakers 8.8 lb / 4 kg at 300 rpm
Features
The Ohaus Endeavor Light Duty Shakers are available in 3 models: 3 mm orbit, 20 mm orbit, or dedicated microplate model. All models can be used in incubators and cold rooms. Stable, accurate, long-term shaking is ensured with the triple eccentric drive and maintenance-free brushless DC motor.
- Applications - Microbiology, Molecular Biology, ELISA Assays, Cell Cultures, Immunoassays, Protein Studies, Bacterial and Yeast Cultures, Staining/Destaining, Blotting Techniques, DNA Studies, Solubility Studies, Environmental and Food Sciences, Chemistry, General Mixing
- Display - Bright, backlit LCD display for speed and time, timer will count up elapsed time or when set, timer will count down and shut off shaking when time reaches zero, green indicator light illuminates when unit is shaking, easy to navigate menu for advanced features
- Operation - Simple knob control for timer and shaking, tray with attachment points for flask clamps, tube racks and non-slip rubber mat included, optional accessories include universal platform and over 20 flask clamps and tube racks. One model dedicated for microplates
- Communication - RS232 interface provides 2-way communication for data logging and unit control
- Construction - Durable chemical-resistant polymer housing, sturdy easy-to-clean aluminum standard tray with attachment points for accessories, IP21 Ingress Protection, robust triple eccentric drive for stable shaking, brushless DC motor, control knobs, on/off switch
- Design Features - Visual and audio alarm when timer counts down to zero or an error occurs, small footprint to save bench space, advanced microprocessor control slowly ramps the shaker tray up to the desired speed and avoids splashing, easy to attach optional accessory platform
Unique Features:
- Budget-Friendly - no need to buy a separate tray. Ready to attach a wide variety of accessories to customize for low to mid volume applications.
- Programmable - save time and guarantee reproducible results. Simple on-board menu to set, store and recall multi-step programs.
- Data logging and control - remote function permits PC control and data transfer.
Visual and audio alarm when timer counts down to zero or an error occurs, small footprint to save bench space, advanced microprocessor control slowly ramps the shaker tray up to the desired speed and avoids splashing, durable chemical-resistant polymer housing, sturdy easy-to-clean aluminum standard tray with attachment points for accessories, optional accessory platform to expand capacity, control knobs, ON/OFF switch
- Product Safety: CE, TUV, TÜV SÜD certified to CAN/CSA C22.2 61010-1 ; CAN/CSA C22.2 61010-2-051; UL 61010-1; UL 61010-2-051
- Electromagnetic Compatibility: Canada ICES-003 Class B; FCC Part 15 Class B
- Other: IP21
Weight: 24.00 lb
Specifications
| Model | e-E51LD0403 30770909 |
e-E51LDMP03 90770911 |
e-E51LD0420 90770910 |
||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Control | Digital | Digital | Digital | ||||||||||||||||||||||||
| Motion | Orbital 0.1 in / 3 mm | Orbital 0.8 in / 20 mm | |||||||||||||||||||||||||
| Speed Range | 100 to 800 rpm | 100 to 1200 rpm* | 50 to 300 rpm | ||||||||||||||||||||||||
| Speed Steps | 1 rpm increments | ||||||||||||||||||||||||||
| Speed Accuracy** | Above 100 rpm + 2% of set speed, Below 100 rpm + 2 rpm | ||||||||||||||||||||||||||
| Timer | Up to 99 hours 59 minutes | ||||||||||||||||||||||||||
| Weight Capacity | 8.8 lb / 4 kg at 400 rpm linearly down to 2.2 lb / 1 kg at 800 rpm |
8.8 lb / 4 kg at 400 rpm linearly down to 2.2 lb / 1 kg at 800 rpm 1.1 lb / 0.5 kg at .900 rpm |
8.8 lb / 4 kg at 300 rpm | ||||||||||||||||||||||||
| Volume Capacity |
|
4 Microplates or 2 x Microtube Racks or 2 x Microplates & 1 x Rack |
|
||||||||||||||||||||||||
| Standard Tray Size (L x W) | 11.75 x 8.75 in / 300 x 222 mm | 11 x 7.75 in / 280 x 197 mm | 11.75 x 8.75 in / 300 x 222 mm | ||||||||||||||||||||||||
| Tray Construction | Aluminum tray with 11 mounting points for accessories. Non-slip rubber mat included | Aluminum tray with hardware to secure Microplates and Deepwell plates | Aluminum tray with 11 mounting points for accessories. Non-slip rubber mat included | ||||||||||||||||||||||||
| Drive System | Brushless DC Motor, Triple Eccentric | ||||||||||||||||||||||||||
| Communication | RS232 | ||||||||||||||||||||||||||
| Programming | On-board programming for 8 separate, 5-step programs | ||||||||||||||||||||||||||
| Recall Feature | Retrieve last 5 recently used settings | ||||||||||||||||||||||||||
| Protection | IP21 | ||||||||||||||||||||||||||
| Dimensions (L x W x H) | 16.5 x 10.3 x 4.7 in / 420 x 262 x 119 mm | ||||||||||||||||||||||||||
| Net Weight | 16.5 lb / 7.5 kg | ||||||||||||||||||||||||||
| Working Environment**** | 14 oF to 104 oF / -10 oC to 40 oC, 80% RH, non-condensing | ||||||||||||||||||||||||||
| Net Weight | 16.5 lb / 7.5 kg | ||||||||||||||||||||||||||
*Microplates and deepwell plates are available with a variety of skirt styles. Depending on the skirt style the maximum speed may need to be reduced.
**Conditions permitting. Variations in measurement process, vessel(s), and sample(s) will impact actual performance.
***Universal Platform 30770938 to be mounted on the standard tray to expand volume loading capacity. See Accessories table in the next page for details.
****Avoid cold starts. Unit is not designed to start after being in a cold room environment. Bring unit into cold room from a room temperature environment, operate and remove unit from cold room as soon as operation is complete.
