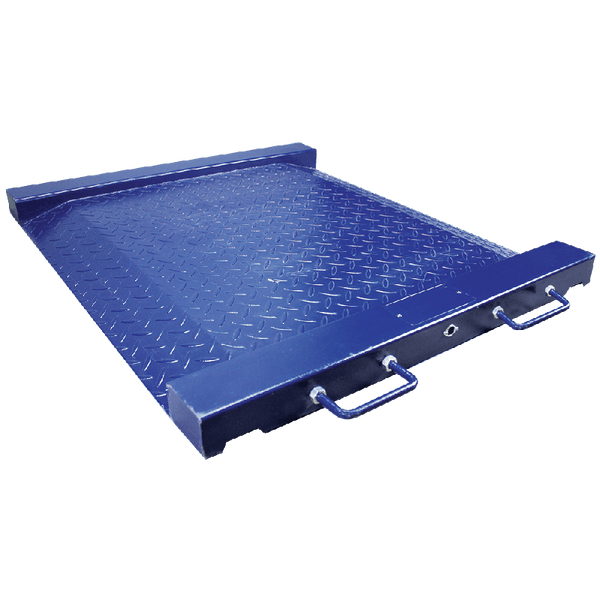

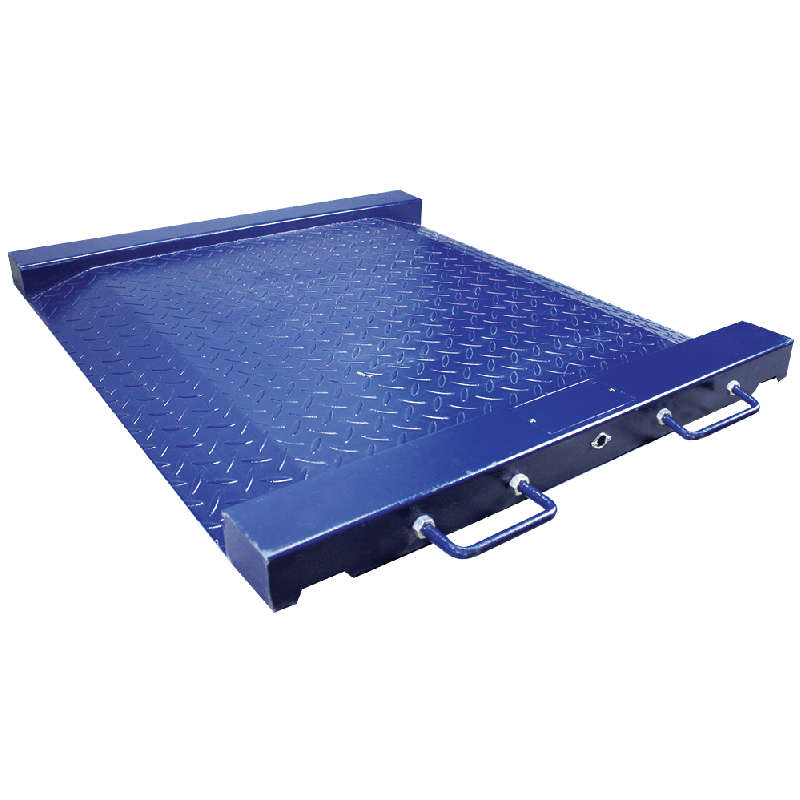

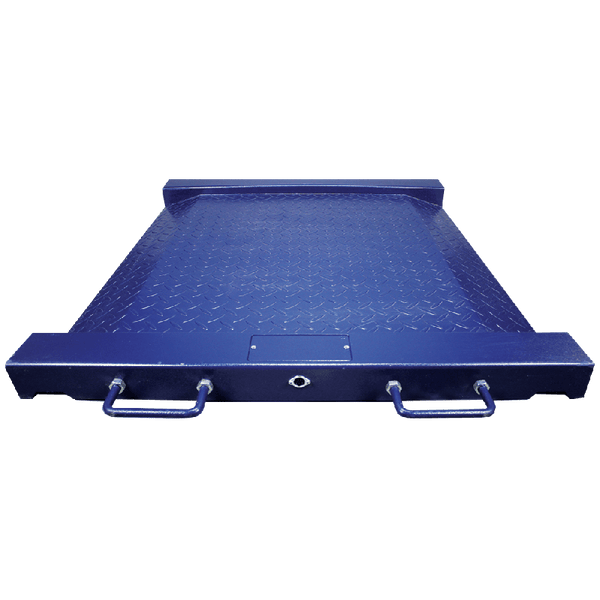

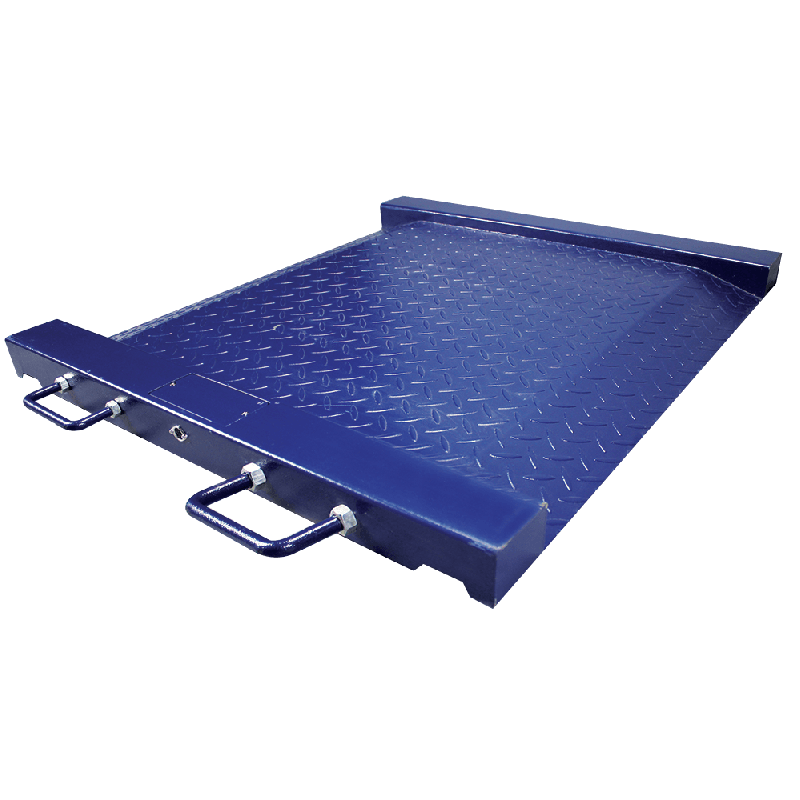

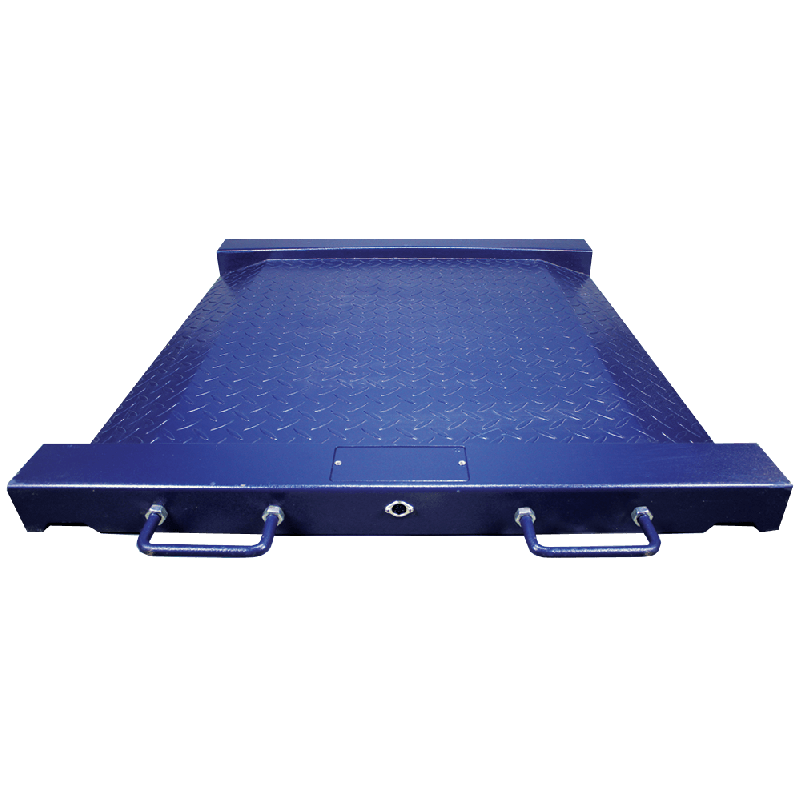

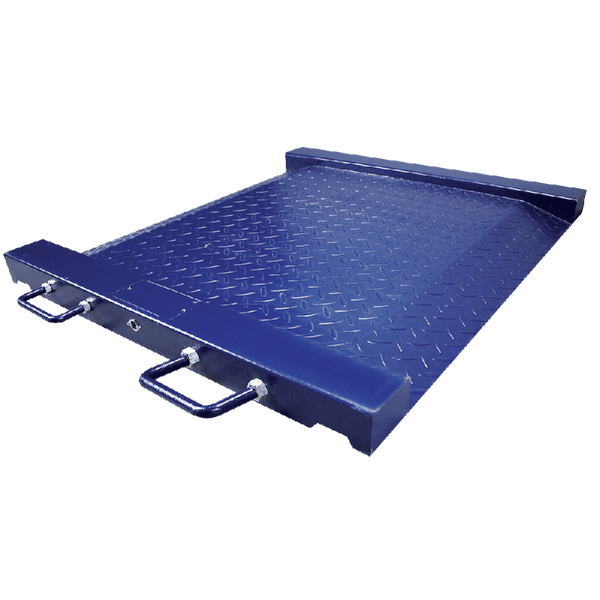

Adam Equipment PTM 500 - PTM Drum and Wheelchair Scale, 1100lb / 500kg

The PTM wheelchair scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform and is suitable for use in warehouses or medical facilities.

PTM drum and wheelchair scales are ideal for checking the weight of wheelchair occupants, barrels and drums, or loaded dollies. Its diamond plate surface provides good grip and a solid, steady weighing area. Handles and wheels enable easy accessibility in a wide range of environments from doctors surgeries, health centres and elderly care homes to warehouse and factory floors.

The PTM is available with the GK indicator or AE 403 indicator, offering a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE 403 is IP67 rated for dusty and wet environments.

Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

Hardware:

• Adjustable leveling feet help optimize setup
• Built-in ramps on each side enable easy access
• Diamond-plate surface for added grip
• Heavy-duty rubber feet ensure stability of unit
• Integrated wheels permit easy movement
• Three-meter/10-foot load cell cable
• Rugged construction stands up to industrial use
• Ramps allow easy access for wheelchair use

Specifications:

• Capacity: 1100lb / 500kg
• Readability: 0.2lb / 0.1kg
• Repeatability: 0.4lb / 0.1kg
• Calibration: N/A
• Stabilization Time: 2
• Pan Size: 29.9"x22.8" / 760x580mm
• Linearity: 0.4lb / 0.2kg
• Power Supply: N/A
• Construction: Mild steel base
• Operating Temperature: -10 Degree to 40 Degree C / 14 Degree to 104 Degree F
• Net Weight: 78.2lb / 35.5kg
• Overall Dimensions: 40.2"x31.6"x3" / 1020x803x75mm (wxdxh)
• Approvals: N/A
• Display Digit Height: 0" / 0mm

Warranty: 12 Month Warranty

Proposition 65 warning

Manuals:

• PTM Drum and Wheelchair Scale - PTM_UM_EN
• PTM Drum and Wheelchair Scale - GK_UM_EN

Datasheet: PTM Drum and Wheelchair Scale - PTM-DS-LT-EN
