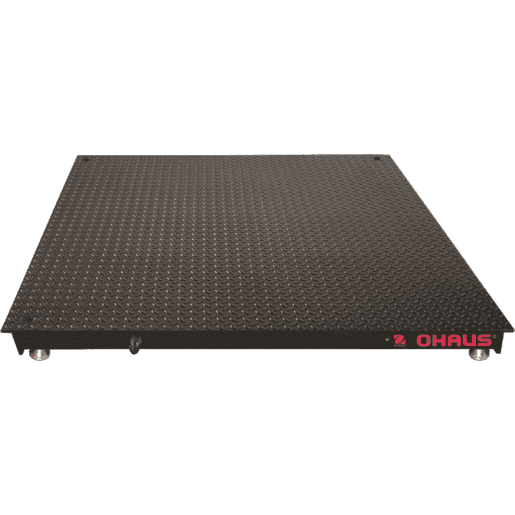

Ohaus 80252561 VN5000L VN Series Floor Platforms

Basic Level Floor Scale Bases

• Durable epoxy painted steel frame and platform
• NEMA4X/IP65 sealed stainless steel junction box
• IP67 sealed loadcells

Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

Product Specifications

• Maximum Capacity: 2200.0 kg (5000.0 lb)
• Readability: 0.5 kg (1.0 lb)
• Readability (Certified): 0.5 kg (1.0 lb)
• Platform Size (Width): 1219.0 mm (4.0 ft)
• Platform Size (Length): 1219.0 mm (4.0 ft)
• Protection Rating: IP67
• Legal for Trade: NTEP Certified
• Dimensions (Length): 1219.0 mm (4.0 ft)
• Dimensions (Height): 90.0 mm (3.5 in)
• Dimensions (Width): 1219.0 mm (4.0 ft)
• Working Environment: -10°C – 40°C, 85%RH, non-condensing
• Net Weight: 128.0 kg (282.0 lb)
• Working Environment: 14°F – 104°F, 85%RH, non-condensing
• Main Purpose: Legal for Trade
• Test Weight: 5000lb, OIML M1 or ASTM CL F
• Platform Construction: Painted Steel Diamond Plate
• Typical Areas: In shipping;logistics and general high capacity weighing

Logistic Specifications

• Country of origin: CN
• Customs tariff number: 8423901000

Documents:

• Data Sheet_VN Series_(EN)_US
• Spare Parts List_VN Bases_(EN)_US
• Manual_VN Floor Scales_(EN FR ES)
