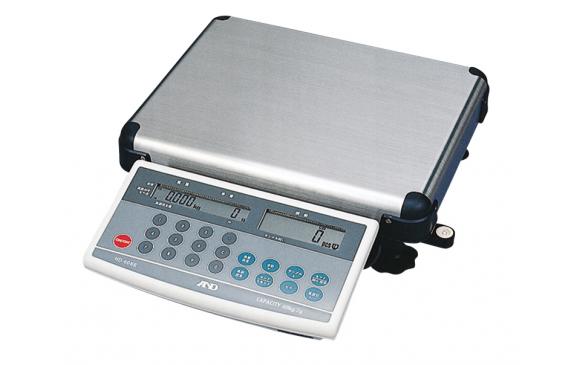

A&D Weighing HD-12KB 30lb, 0.005lb, Counting Scale with Dual Display and 10-Digit Keypad - 2 Year Warranty

HD Series of high capacity counting scales offer high internal resolution with capacity to 120 lbs. A& exclusive Automatic Count Accuracy Improvement corrects errors caused by variation in unit weights. Standard models feature simple 2-button operation, single display without keypad for ultra simple use. The enhanced models feature a large detachable 3 window LCD display/keyboard. Also included is a comparator function mode for packing applications.

Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.

Two Year Warranty

Economical, Compact Counting Scale for Basic Industrial Applications such as Cycle Counting and Physical Inventory

• Internal resolution up to 1/120,000
• Operates on AC power or 6 C-cell batteries
• Memory plus function allows for accumulating count data

Key Features:

• Rechargeable Battery (Optional)
• RS-232C (Optional)
• Accumulation Function
• Auto Power OFF
• Piece Counting Function
• Comparator Function
• LCD Display
• 2 Year US Warranty

Quick and Easy Operation

• Quickly determine if a weight count is below, within or above target with the built-in comparator function
• Optional RS-232C interface allows for easy connection to a printer or computer
• Large, clear liquid crystal display (LCD) shows all important information at a glance even in dimly lit areas
• Detachable display and large, stainless steel platform are ideal for weighing oversized containers
• Intuitive operation with either standard keys (HD-A) or 10-digit keypad (HD-B)

Trusted Accuracy

• High internal resolution up to 1/120,000 counts for accurate parts counting
• Increased counting accuracy with Automatic Count Accuracy Improvement (ACAI), which automatically corrects errors caused by variation in unit weights
• Key Lock Function limits operators to the minimum required keys, preventing accidental changes and errors

Construction

• Stainless Steel (430) Platform
• ABS Molded Plastic Housing

Weighing Units

• lb, kg and pcs

Specifications:

• Capacity: 30lb / 12kg
• Readability: 0. 005lb / 0. 002kg
• Min. Unit Wt (1/30,000) mode-selectable): 0. 4g
• Min. Unit Wt (1/120,000 mode-selectable): 0. 1g
• Sample Size: 5, 10, 25, 50, 100 pcs. or user selectable
• Sensitivity Drift: 20ppm/ Degree C (5 Degree C - 35 Degree C / 41 Degree F - 95 Degree F)
• Operating Temp. : -10 Degree C to 40 Degree C (14 Degree F to 104 Degree F), less than 85% RH (No-condensing)
• Linearity: ?0. 5g
• Display: LCD, Weight & Unit Weight 5 Digits, Piece Count Wt. 6 Digits, 17mm / 0. 67in (Height)
• Power: AC Adapter, 6 x C batteries or rechargeable NiCd Battery Pack (AD-1681)
• Battery Life: Approx. 200 with alkaline batteries or 20 hours with rechargeable NiCd Battery Pack, (AD-1681) at 20 Degree C / 68 Degree F
• Pan Size: 11. 81 x 14. 96in / 300 x 380mm
• Dimensions (W x D x H): 16. 18 x 18. 50 x 4. 72in / 411 x 470 x 120mm
• Weight (Approximate): 6. 6lb / 3kg
• Standard Accessories: AC Adapter, Manual

Accessories:

A&D HD-06 Carrying Handle

A&D AD-1681 Rechargeable Battery Pack

A&D HD-05 Current Loop Printer Interface

A&D HD-03 Serial Interface (RS-232C/Current Loop)

A&D HD-04 Comparator Output

A&D TB:636 AC Adapter (120V) - Standard with unit

A&D TB:636 AC Adapter (120V) - Standard with unit
