Adam Equipment AELP 1000 - AELP Pallet Beams

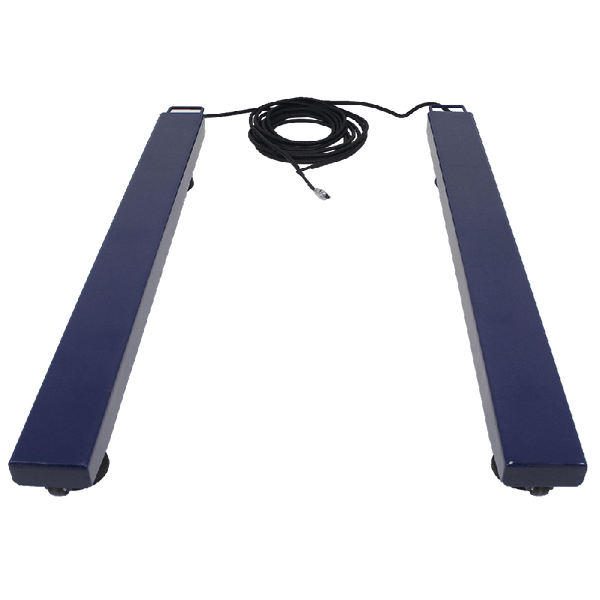

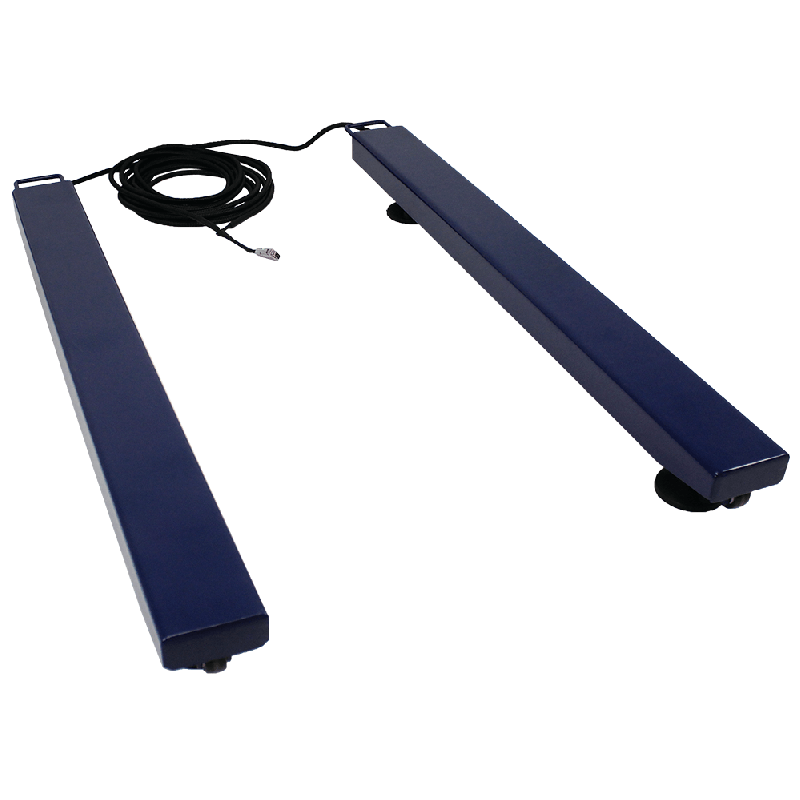

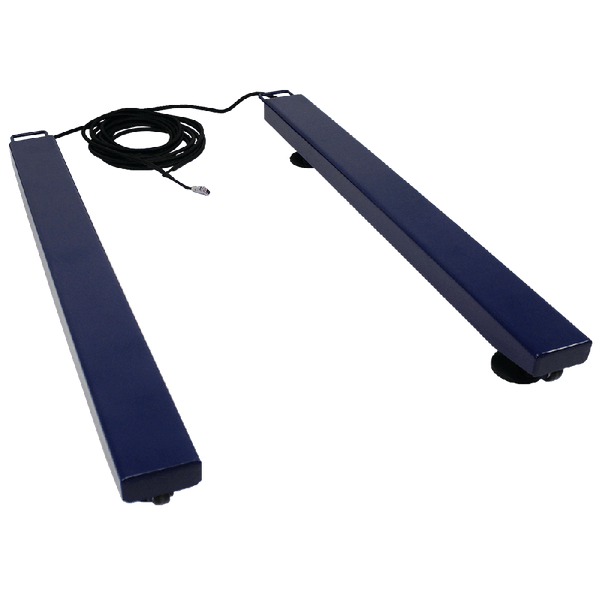

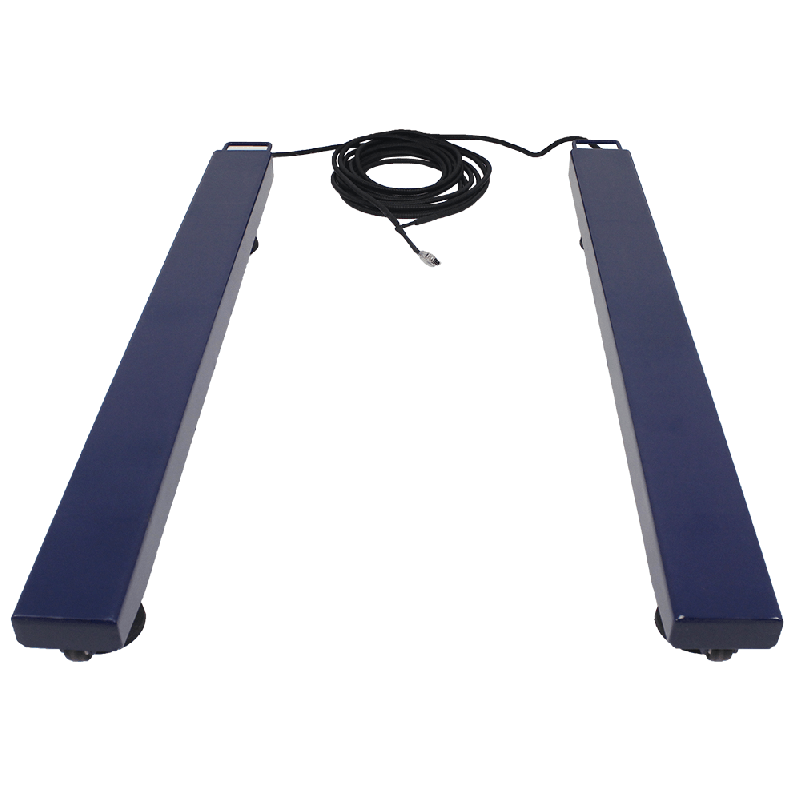

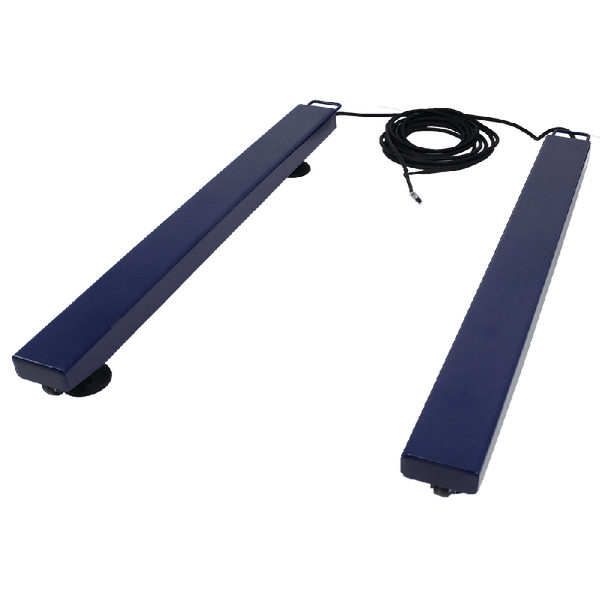

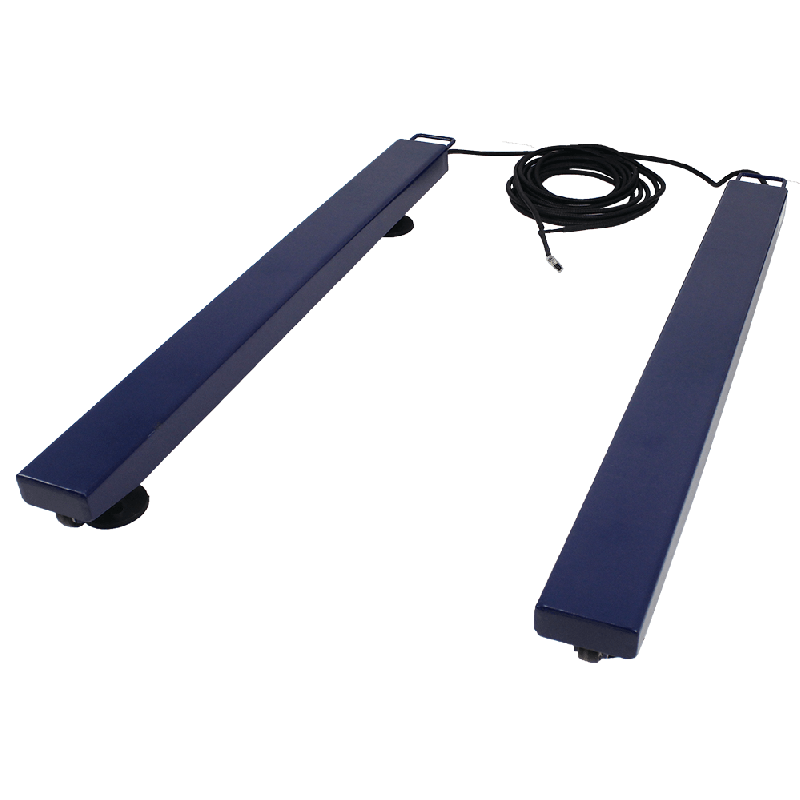

 AELP pallet beams offer fast, precise mobile weighing up to 2000kg for industrial and commercial environments. The beams can be extended and retracted depending on the size of the object and are supplied with built-in wheels and handles, making them easy to move around.

Enclosed channels with high-quality load cells provide accurate, repeatable measurements and are built to withstand the rigors of constant warehouse use. Use the AELP with the GK or AE402 indicator for the desired range of features. AELP beams are equipped with approximately five meters of shielded cable.

AELP pallet beams make ideal cattle scales that can be easily combined with weighing platforms, cattle crushes or cages by mounting these on top of the beams for effective livestock weighing.

Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

Approval:

• OIML-approved load cells

Hardware:

• Low-profile beams allow easy pallet weighing using pallet trucks
• Approximately five-meter/15-foot shielded cable
• Heavy-duty rubber feet ensure stability of unit
• Integrated wheels permit easy movement
• Can be used with any Adam indicators
• Two beams per set

Specifications:

• Capacity: 2200lb / 1000kg
• Readability: 0.5lb / 0.2kg
• Repeatability: 1lb / 0.2kg
• Weighing Units: N/A
• Calibration: External calibration
• Stabilization Time: 2
• Pan Size: 4.7"x52.4" / 120x1330mm
• Linearity: 1lb / 0.4kg
• Power Supply: N/A
• Construction: Mild steel base
• Interface: N/A
• Operating Temperature: -10 Degree to 40 Degree C / 14 Degree to 104 Degree F
• Net Weight: 74.9lb / 34kg
• Overall Dimensions: 4.7"x52.4"x3.3" / 120x1330x85mm (wxdxh)
• Approvals: N/A
• Display Digit Height: 0" / 0mm

Warranty: 12 Month Warranty

Proposition 65 warning

Manuals:

• AELP Pallet Beams - GK_UM_EN
• AELP Pallet Beams - GC_UM_EN
• AELP Pallet Beams - AEP_UM_EN
• AELP Pallet Beams - AELP_UM_EN
• AELP Pallet Beams - AELP_setup_EN

Datasheet: AELP Pallet Beams - AELP-DS-LT-EN
