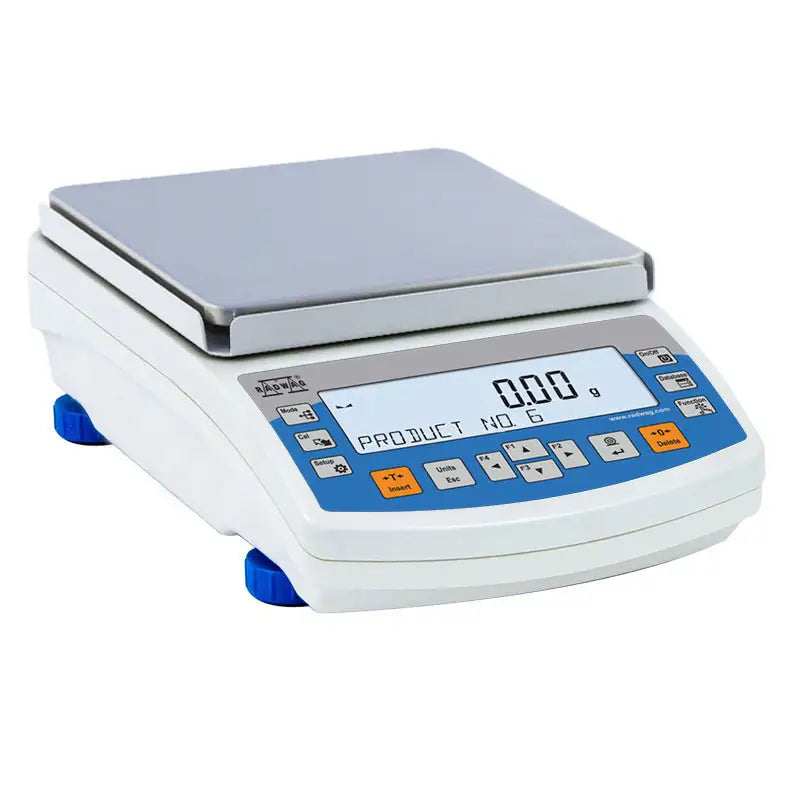

RADWAG PS 3500.R2.M  Precision Balance WL-212-0173

RADWAG PS 3500.R2.M Precision Balance WL-212-0173

Description

PS.R2 series balances represent a new standard of precision balances. They feature a new, readable LCD display which allows a clearer presentation of the weighing result. Besides, the display has a new text information line allowing to show additional messages and data, e.g. product name or tare value.

New PS.R2 balances, like previously designed PS series balances, have pans in two possible dimensions: 128x128 mm or 195x195 mm. balances with a smaller pan have a draft shield. The balance precision and the measurement accuracy is assured by automatic internal adjustment, which takes into consideration temperature changes and time flow.

PS.R2 balances feature several communication interfaces: 2 x RS 232, type A USB, type B USB and optional Wireless Connection.

The new PS.R2 high capacity balances (6100, 8100 and 10100) feature centrally fixed weighing pan and additional sealing ring. This solution improves air-tightness and simplifies cleaning.

To advance accuracy, the new balances have been equipped with metal anti-draft shield.

Additional assets are both expanded capacity (even up to 10.1 kg) and smaller dispersion of weighings – better repeatability.

The balance may cooperate with computer by means of USB interface supposing a supplementary software has been installed (respective driver). The said driver may be downloaded from RADWAG website – SOFTWARE link or SUPPORT section.

The housing is made of plastic, and the pan is made of stainless steel.
The balances have a possibility to weigh products out of the pan (under hook weighing) - the load hangs under the pan. DATABASES IN R SERIES BALANCES

The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis. The data is registered in 5 databases:

  • - users (up to 10 users),
  • - products (up to 1000 products),
  • - weighments (up to 5000 weighments),
  • - tares (up to 100 tares),
  • - ALIBI memory (up to 100 000 weighments).



There is two directions data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.
Quick access to information
Direct access to functions and databases is possible from the level of keyboard.

  • Database – a direct access to databasis
  • Function - a direct access to the basic functions
  • F1 to F4 – programmable function and navigation keys on the menu

ALIBI memory The used ALIBI memory is a data secure area and allows to record up to 100 000 weighment records. It ensures security of constant data register in the long time period.

      Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.

      Product Specifications




      Datasheet

      Metrological parameters
      Physical parameters
      Communication interface
      Electrical parameters
      Environmental conditions
      Maximum capacity [Max]

      3500

       g

      Minimum load

      500

       mg

      Readability [d]

      0.01

       g

      Verification scale interval [e]

      0.1

       g

      Tare range

      -3500

       g

      Repeatability (Max)

      0.008

       g

      Repeatability (5% Max)

      0.005

       g

      Linearity

      ±0.02

       g

      Stabilization time

      1.5

       s

      Adjustment

      internal (automatic)



      OIML Class

      II



      Leveling system

      manual



      Display

      LCD (backlit)



      Protection class

      IP 43



      Delivery components

      Balance, weighing pan, weighing pan shield, power supply



      Weighing pan dimensions

      195×195

       mm

      Packaging dimensions

      470×380×336

       mm

      Net weight

      4.5

       kg

      Gross weight

      6

       kg

      Communication interface

      2×RS232¹, USB-A, USB-B, Wi-Fi® (option)



      Power supply

      Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
      Balance: 12 – 15V DC 0.4A max



      Operating temperature

      +10 — +40

       °C
