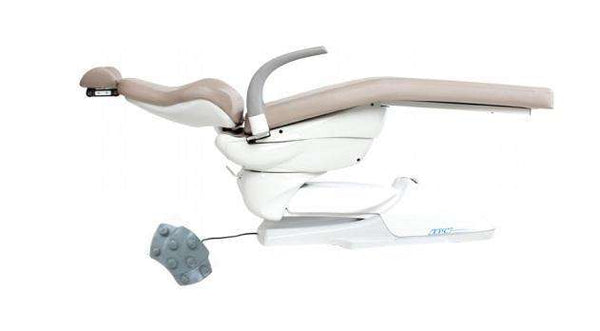

TPC Dental 4000-SW Mirage Hydraulic Patient Chair (For Swing Mount Unit, Include Standard Chair Upholstery) w/Warranty

Mirage Hydraulic Patient Chair (For Swing Mount Unit, Include Standard Chair Upholstery)

Please note that customers for international transactions will be responsible for import taxes, clearance, and duty taxes.

Product includes the following:

• Two programmable positions
• One preset exit position
• Electronic foot control with auto return function
• Built-in fuse / surge protection
• Toe guard protection to prevent scuffing
• All-metal construction
• Safety shut-off base plate
• Double articulating headrest, adjustable for height and wheelchair positioning
• Locking swivel, 60 degree
• Pivoting armrests for easy entry to and exit from chair
• Seamless Upholstery
• Wide chair back
• Coordinated leg rest tilt
• Input voltage 110V or 220V

Specifications:

• Lifting/lowering mechanism: Hydraulic, cantilever type
• Initial height/stroke: 15.5" / 15"
• Backrest reclining angle: 0 degree (Horizontal) - 70 degree
• Seat tilting: 10 degree - 20 degree , synchronized with backrest
• Preset position: Microcomputer control. Three preset position, autoreturn, last position
• Chair rotation angle: 30 degree left / 30 degree right of centerline
• Headrest: Dual axis type
• Safety shut-off plate: Under the main link
• Emergency stop: Any switch can cancel chair movement
• Warranty 5 Year Limited

Standard Features:

• Synchronous backrest
• Articulating dual axis headrest
• Cast aluminum base
• Swing-away armrests
• Programmable foot control
• Short pump cover

Packing Dimensions:

• Chair: 54 x 34 x 31 - 300 lbs
• Cushion: 51 x 24 x 10 - 27 lbs
• Chair Bracket: 22 x 9 x 6 - 11 lbs

Options:

• PC-1000-DU Replacement Dental Chair Upholstery Duration Vinyl -Wide Back
• PC-1000-Vinyl-UC Upcharge Non-Standard Dental Chair Upholstery Vinyl -Wide Back
• PC-2000-DU Replacement Dental Chair Upholstery Duration Vinyl -Narrow Back
• PC-2000-Vinyl-UC Upcharge Non-Standard Dental Chair Upholstery Vinly -Narrow Back
• PC-2000-ultr-UC Upcharge Ultra Leather Dental Chair Upholstery leather -Narrow Back
