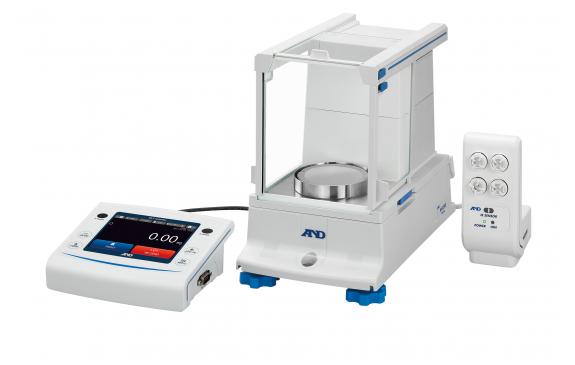

A&D BA-225TE, 220 g x 0.01 mg with touch screen display, external ionizer and automatic doors

Borealis Series BA Balances

• 5" color touch screen display makes operation a breeze
• Internal calibration with Auto-Self Calibration feature to adjust for temperature variations, ensuring consistent results
• Standard external ionizer helps to eliminate errors due to static electricity
• Automatic doors controlled by IR sensors allow for smooth and efficient access to the weighing chamber
• Industry leading 5-year A&D warranty

Ease of Use

With a 5-inch wide color touch screen, the BA-T series brings maximum operability, enhanced functionality and a broader range of solutions. All models come standard with an external ionizer for quick and easy elimination of static.

The side doors of the breeze break can be opened/closed using the non-contact IR sensors on the display unit (or optional foot switches) for smooth, efficient access to the weighing chamber. For the actuator, A&D adopt a pump and air cylinder mechanism, which is much more quiet and durable than conventional motor actuators.

Detachable breeze break unit allows for fast and simple cleaning

The touch screen provides a visual instruction on which leveling foot (feet) to rotate in which direction(s) depending on the position of the air bubble on the level indicator.

Guaranteed Precision

The balance can be set to calibrate and adjust its sensitivity automatically using its internal weight to ensure consistent measurements even in changing environments

With the internal repeatability test, It is also possible to have the balance test and calculate the standard deviation using its internal weight to quickly assess the performance under a given environment.

With the standard external ionizer, you can easily ensure that your sample (and container) is completely free from destabilizing static electricity. In addition, the glass panes of the breeze break are coated to block outside static electricity.

All BA-T balances can perform daily or periodic diagnostic checks to confirm leveling, environmental conditions and accuracy.

Data Protection

Users can be classified into four levels to protect against unauthorized changes and up to 100 users can be registered (including the administrator).

The BA-T can display/save up to 1,000 events such as log-in/log-out history, changes to settings and sensitivity adjustment history. Once full, it can save to a USB drive to display in CSV format.

Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

5 Year Warranty

Specifications

• Capacity: 220 g
• Readability: 0.01 mg
• 5 Year Warranty
• Max Capacity: 220 g
• Readability: 0.01 mg
• Repeatability: 0.015 mg (for 50 g), 0.03 mg (for 200 g)
• Linearity: ± 0.15 mg
• Calibration: Internal - Auto Self Calibration
• Stabilization Time: Approx. 10 s
• Weighing Pan Dimensions: Ø 85 mm / 3.35 in
• Weighing Unit + Draft Shield : 173 (W) × 305 (D) × 284 (H) mm
• Net Weight: 6.7 kg

Accessories:

A&D AD-1689 Tweezers for Calibration Weight

A&D AX-BM-031 Display Covers (5 pcs)

A&D GP-22 AD-8121B Printer Support

A&D AD-8922A Remote Controller

A&D AX-USB-2920-9P 9 pin RS-232 to USB Converter

A&D AD-1192 Compact Printer

A&D AD-1671 Anti-Vibration Table for Balances

A&D AD-1682 Rechargeable Battery Pack

A&D AX-USB-2920-9P 9 pin RS-232 to USB Converter

A&D AD-1192 Compact Printer

A&D AD-1671 Anti-Vibration Table for Balances

A&D AD-1682 Rechargeable Battery Pack

A&D AD-1653 Density Determination Kit (for BM-252 / 200 / 300 / 500 only)

A&D AX-BM-NEEDLESET Electrode units for BM's ionizer

A&D AD-1672 Tabletop Breeze Break

A&D AD-1684 Electrostatic Field Meter
