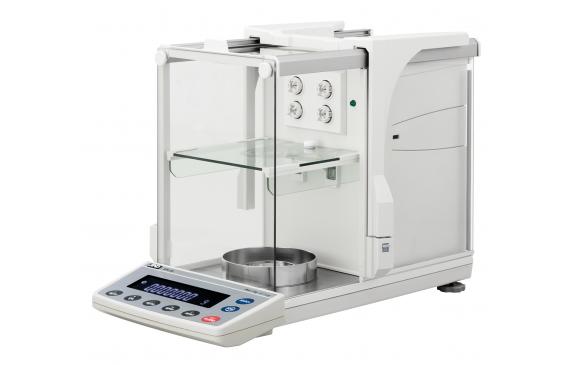

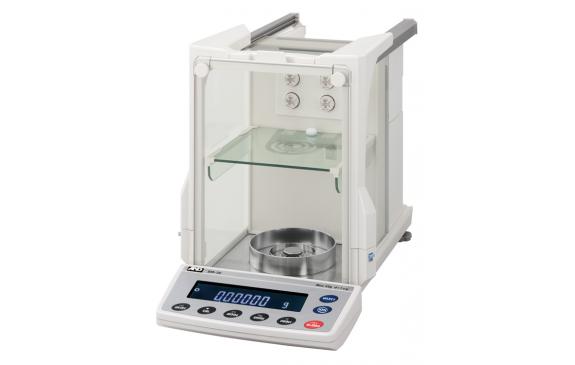

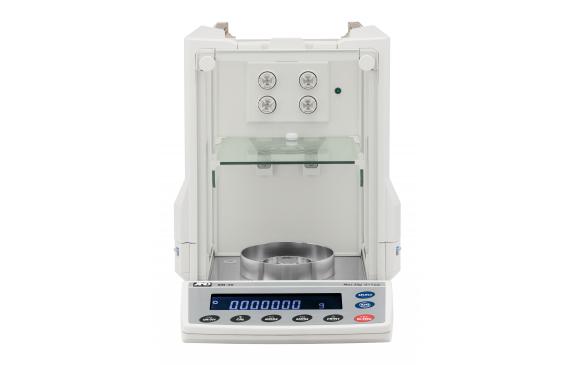

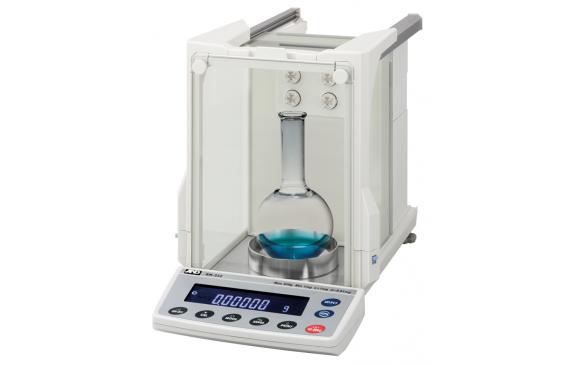

A&D Weighing Ion BM-22 5.1 g / 22 g x 0.001 mg / 0.01 mg Micro Balance with RS-232C

Five Year Warranty

• • A&D Weighing Ion BM-500 Analytical Balance, 520g x 0.1mg with Internal Calibration with Warranty




  • Eliminates risk with smart weighing features
  • Enhanced OES Ordinal Electromagnetic Sensor with Micro 0.001mg resolution
  • Built-in fan-less ionizer to eliminate static interferences
  • Automatic Response Adjustment reduces effects from draft & vibration
  • One touch Full Digital Cal with Auto-Self Cal guards against temperature fluctuations

  • Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

  Eliminates Interferences

  • Easy ION switch allows built-in fan-less internal ionizer to neutralize electrostatically charged objects instantly at no additional costs
  • Large breeze chamber is flexible enough to adjust to all sample vessels small or large
  • Anti-static glass coating blocks outside electrical interferences
  • Auto response adjustment allows balance to auto or manually stabilize FAST, MID, SLOW depending on draft &vibration influences
  • Built in environmental sensors monitor and display the temperature, humidity and atmospheric pressure

  Superior Functionality

  • Illuminated back-mounted spirit level bubble helps reduce leveling time and increase accuracy & precision
  • One touch Full Digital Calibration (internal & external) ensures balance is calibrated onsite for the best performance
  • Auto Self Calibration will detect changes in ambient temperature and auto calibrate.

  Diverse Data Solutions

  • Data Memory up to 200 points
  • GLP/GMP/GCP/ISO compliant reports with Manufacturer, Model, Serial, Balance ID, Time/Date, Mass Std, Signature space

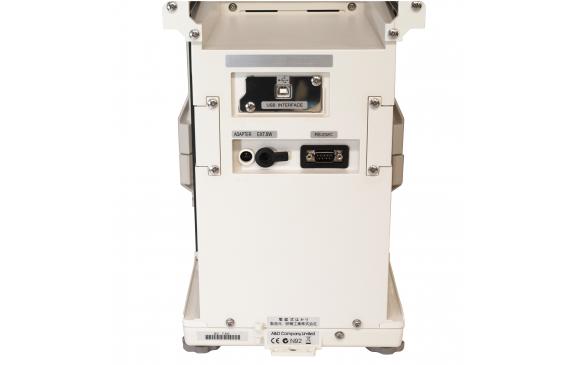

  • Comes standard with USB and RS-232C with Optional Bluetooth and LAN Ethernet Interface with WinTC-Plus software
  • AD1688 Data Logger hand held device allows storage up to 5,000 pt with time/date and direct output via USB

  Product Specifications

  • Max Capacity: 5.1 g / 22 g
  • Readability: 0.001 mg / 0.01 mg
  • Repeatability: 0.004 mg (for 1 g) / 0.01 mg
  • Linearity: ±0.010 mg / ±0.02 mg
  • Calibration: Internal - Auto Self
  • Stabilization Time: 10 s | 8 s
  • Weighing Pan Dimensions: Ø 25 mm / 0.98 in
  • Product Dimensions: 259 x 466 x 326 mm
  • Draft shield: 252 x 140 x 165 mm : Tall Glass Breeze Break with Ionizer and Collapsible Doors

  Documents:

  • Instruction Manual (BM Ion)
  • Instruction Manual Addendum (BM Ion)
  • Product Notes (Microbalances)
  • Datasheet (Ion BM)
  • Brochure (Ion BM)
