A&D Weighing Ion BM-5D 2.1g/5.2 g x 0.001 mg/0.01 mg Micro Balance with RS-232C

Five Year Warranty

• • A&D Weighing Ion BM-5D Microbalance, 5.2/2.1g x 0.001/0.01mg with Internal Calibration and Static Eliminator

    Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

  • Microbalance, 5.2/2.1g x 0.001/0.01mg with Internal Calibration and Static Eliminator

    • Eliminates risk with smart weighing features
    • Enhanced OES Ordinal Electromagnetic Sensor with Micro 0.001mg resolution
    • Built-in fan-less ionizer to eliminate static interferences
    • Automatic Response Adjustment reduces effects from draft & vibration
    • One touch Full Digital Cal with Auto-Self Cal guards against temperature fluctuations

    Key Features:

    • Revese Liquid Crystal Display
    • Built-in Data Memory Function
    • Clock & Calendar
    • Underhook
    • LAN Ethernet (Option)
    • Full Digital Calibration
    • Auto On/Off Function
    • Percent Weighing
    • RS-232C Interface
    • GLP/GMP/GCP/ISO Compliant Output
    • 5 Year US Warranty
    • Piece Counting Function
    • Quick USB

    Eliminates Interferences:

    • Easy ION switch allows built-in fan-less internal ionizer to neutralize electrostatically charged objects instantly at no additional costs
    • Large breeze chamber is flexible enough to adjust to all sample vessels small or large
    • Anti-static glass coating blocks outside electrical interferences
    • Auto response adjustment allows balance to auto or manually stabilize FAST, MID, SLOW depending on draft &vibration influences
    • Built in environmental sensors monitor and display the temperature, humidity and atmospheric pressure

    Superior Functionality:

    • Illuminated back-mounted spirit level bubble helps reduce leveling time and increase accuracy & precision
    • One touch Full Digital Calibration (internal & external) ensures balance is calibrated onsite for the best performance
    • Auto Self Calibration will detect changes in ambient temperature and auto calibrate.

    Diverse Data Solutions:

    • Data Memory up to 200 points
    • GLP/GMP/GCP/ISO compliant reports with Manufacturer, Model, Serial, Balance ID, Time/Date, Mass Std, Signature space

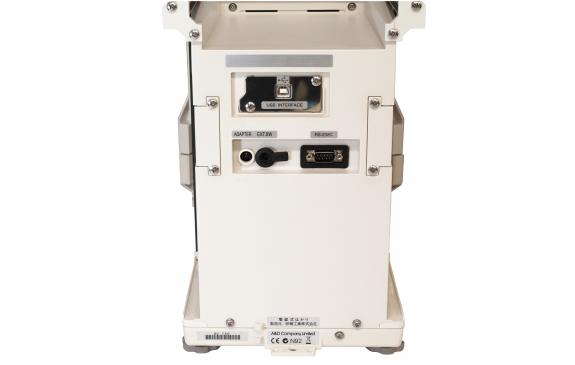

    • Comes standard with USB and RS-232C with Optional Bluetooth and LAN Ethernet Interface with WinCT-Plus software
    • AD1688 Data Logger hand held device allows storage up to 5,000 pt with time/date and direct output via USB

    Specifications:

    • Max Capacity: 5.2 g / 2.1 g
    • Readability: 0.001 mg / 0.01 mg
    • Repeatability: 0.004 mg (for 1 g) / 0.01 mg
    • Linearity: ?0.010 mg / ?0.02 mg
    • Calibration: Internal - Auto Self Calibration
    • Stabilization Time: Approx. 10 s / 8 s
    • Weighing Pan Dimensions: ? 25 mm / 0.98 in
    • Product Dimensions: 259 x 466 x 326 mm

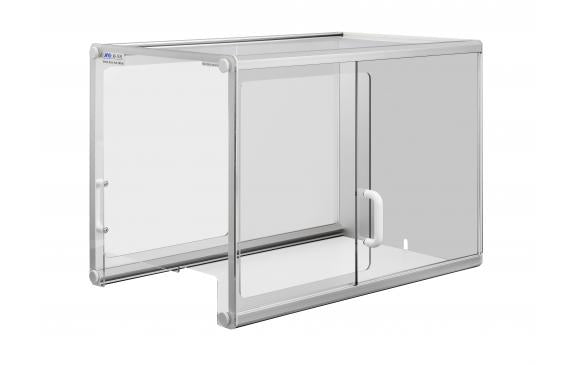

    • Draft shield: 252 x 140 x 165 mm, Tall Glass Breeze Break with Ionizer and Collapsible Doors
