RADWAG AS 520.X2 PLUS Analytical Balance with Auto Level 520 g x 0.1 mg WL-104-0184

RADWAG AS 520.X2 PLUS Analytical Balance with Auto Level 520 g x 0.1 mg WL-104-0184

OVERVIEW

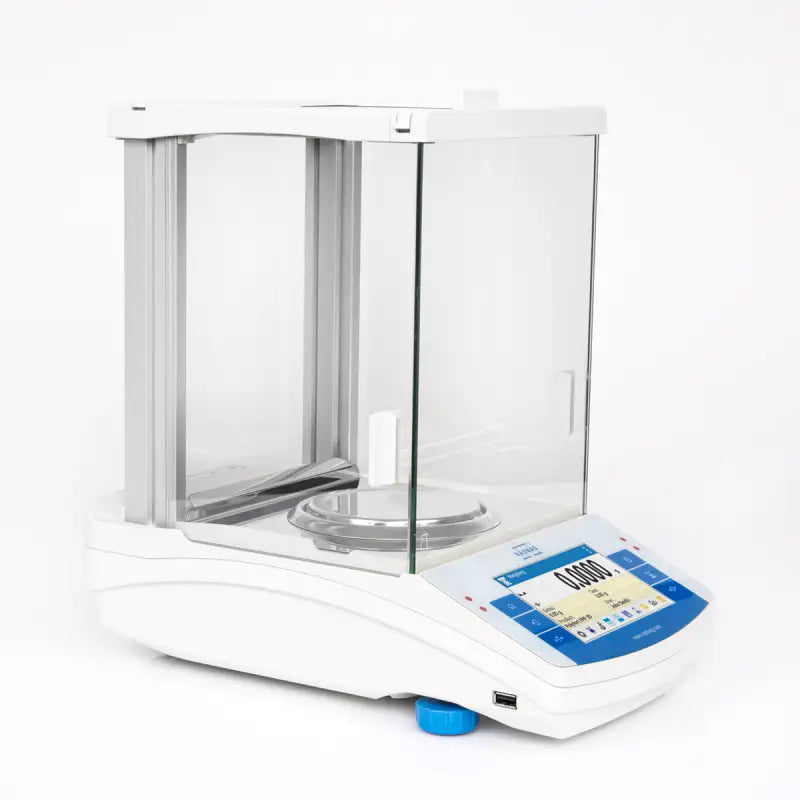

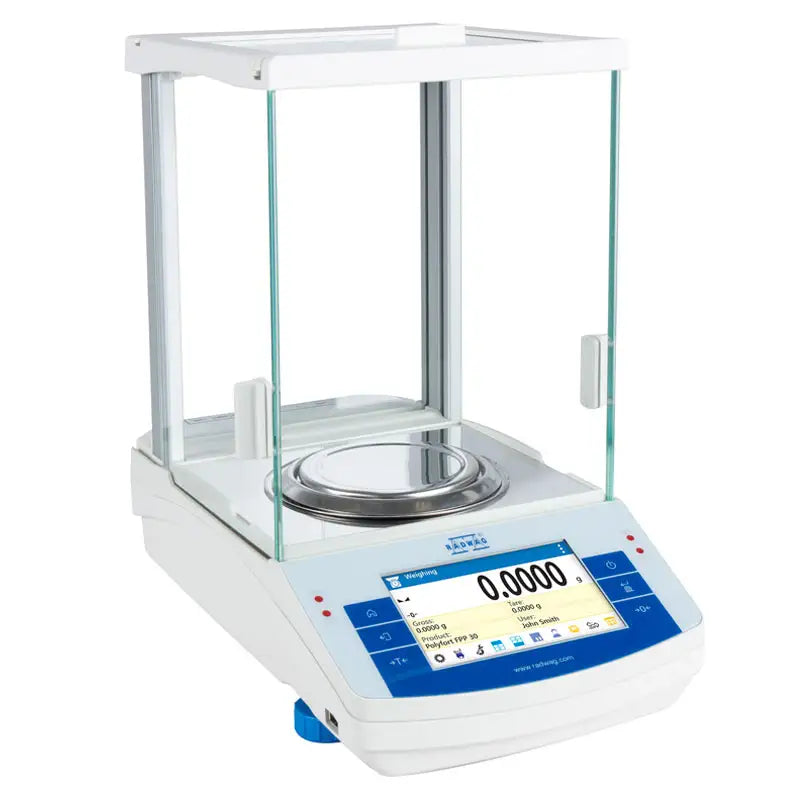

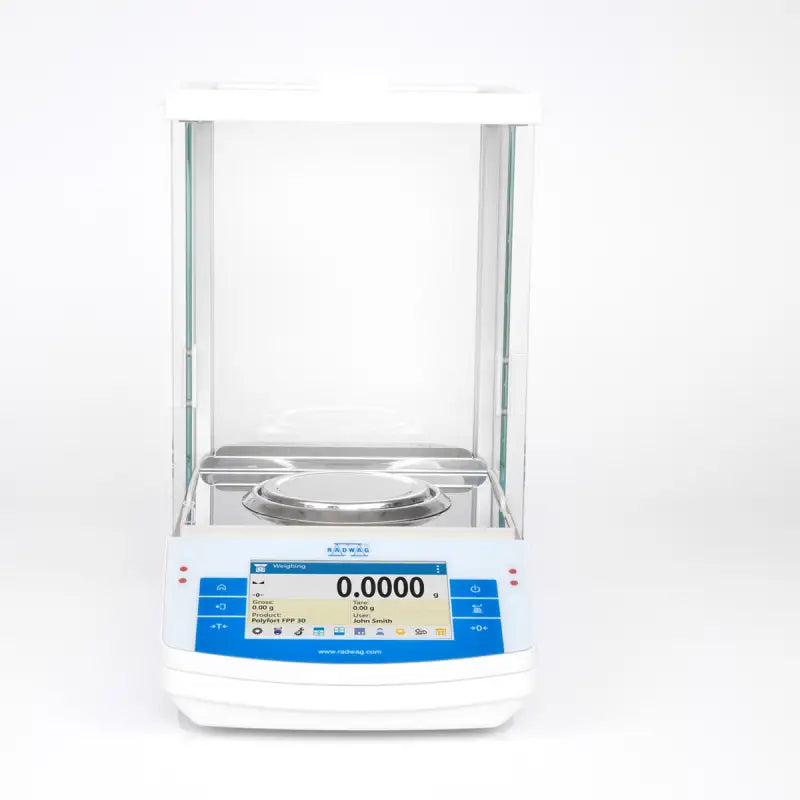

Radwag AS 520.X2 PLUS Analytical Balance

Radwag AS X2 PLUS series analytical balances offer elevated performance and functionality for demanding laboratory weighing tasks. The Radwag X2 is the only balance available on the market that provides a user with the option to customize the brilliant 5" color touchscreen display using a wide selection of widgets. Having the capability of a customized display offers direct access to weighing results and other important information directly from the home screen. Automatic internal calibration helps ensure weighing accuracy when the balance detects temperature change or defined time lapse. ALIBI memory allows storage of up to 100 user profiles, 100 formulas and a whopping 500,000 weighing results!

Features

  • 520 g capacity and 0.0001 g readability
  • Two programmable IR sensors allow for touchless operation
  • Large 5" color touchscreen display
  • Customizable display allows user to setup the home menu based on their requirements
  • Automatic internal calibration

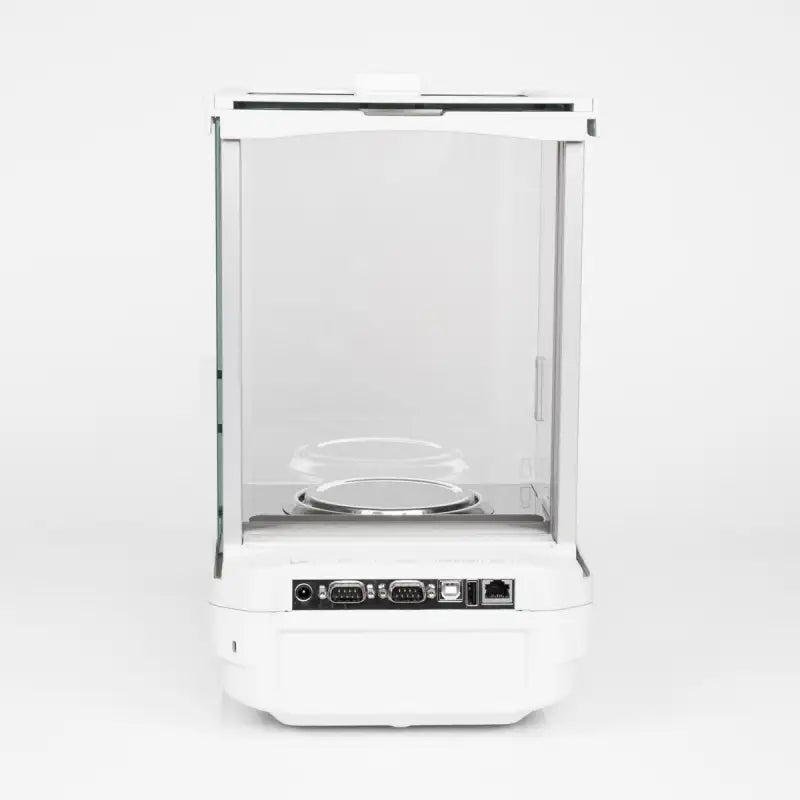

  • Multiple connectivity ports including RS 232, 2 x USB-A, USB-B, WiFi, and Ethernet
  • Multiple weighing functions including underhook weighing for density determination

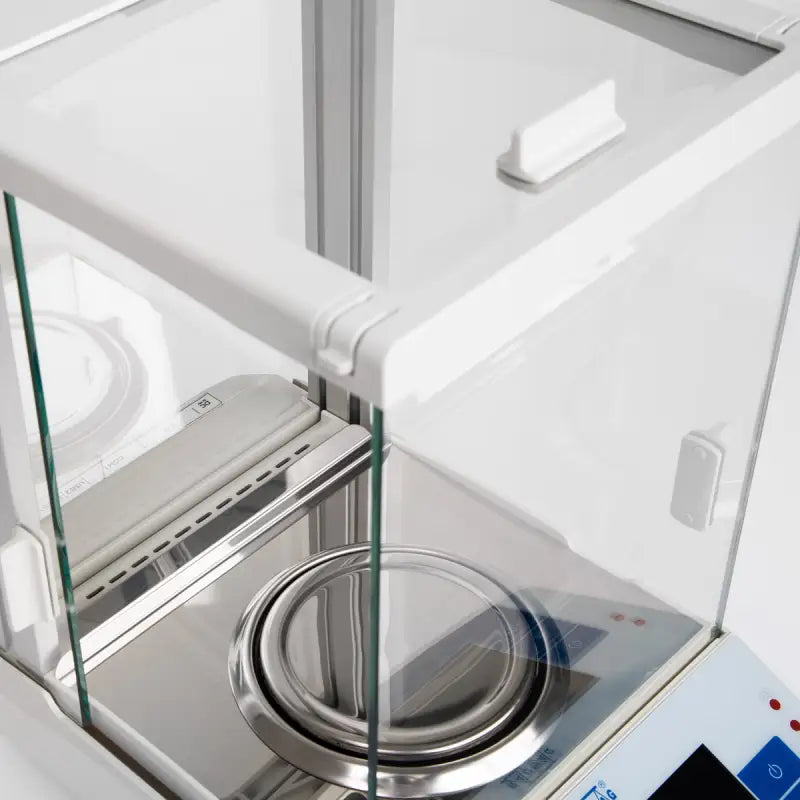

  • Durable construction features ABS plastic housing, stainless steel pan and glass draft shield
  • ALIBI memory includes storage of up to 100 users, 100 formulations, 5000 products, and 500,000 weighing results
  • User friendly operation with intuitive menu and keypad
  • Large bright LCD display

Weighing Applications

  • Weighing
  • Checkweighing
  • Animal weighing / Dynamic weighing
  • Parts counting
  • Percent weighing
  • Dosing / Formulation
  • Density determination
  • Statistics
  • Totalization

              Note: For all International Orders, the buyer will be solely responsible for the customs clearance, duty, and taxes imposed on the package.

              Datasheet

              Maximum capacity [Max]

              520

               g

              Minimum load

              -



              Readability [d]

              0.1

               mg

              Tare range

              -520

               g

              Standard repeatability [5% Max]

              0.07

               mg

              Standard repeatability [Max]

              0.2

               mg

              Standard minimum weight (USP)

              140

               mg

              Standard minimum weight (U=1%, k=2)

              14

               mg

              Permissible repeatability [5% Max]

              0.12

               mg

              Permissible repeatability [Max]

              0.4

               mg

              Linearity

              ±0.6

               mg

              Stabilization time

              2.5

               s

              Adjustment

              internal (automatic)



              OIML Class

              I



              Leveling system

              manual



              Display

              5” graphic color touchscreen



              Protection class

              IP 43



              Delivery components

              Balance, weighing pan, weighing pan shield, bottom cover, power supply.



              Weighing chamber dimensions

              190×190×222

               mm

              Weighing pan dimensions

              ø100

               mm

              Packaging dimensions

              495×400×515

               mm

              Net weight

              7.3

               kg

              Gross weight

              9.3

               kg

              Database capacity

              7



              Communication interface

              RS232¹, 2×USB-A (interchangeable), USB-B, Wi-Fi®, Ethernet



              Touch-free operation

              2 IR Sensors



              Power supply

              Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
              Balance: 12 – 15V DC 0.8A max



              Power consumption max.

              4 W



              Operating temperature

              +10 — +40

               °C

              Relative humidity

              40% — 80%
