RADWAG HY10.150.HRP.H PRECISION BENCH SCALE, 150 KG X 1 G, INTERNAL CALIBRATION

RADWAG HY10.32.HRP.H PRECISION BENCH SCALE, 32 KG X 0.1 G, INTERNAL CALIBRATION



OVERVIEW

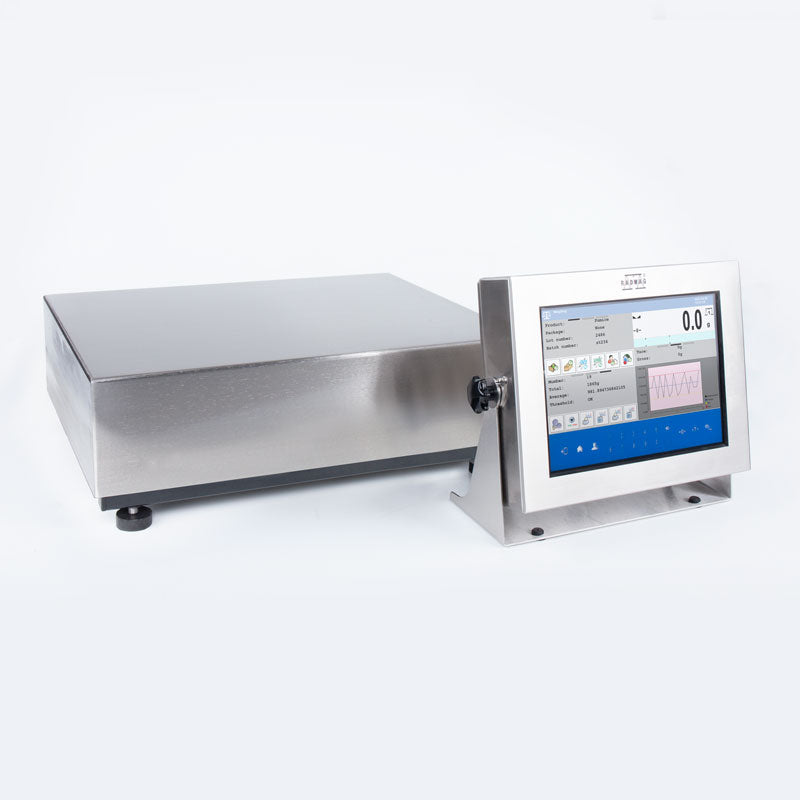

Radwag HY10.HRP.H series is designed to handle challenging industrial conditions while providing high resolutions generally only available through laboratory balances. The rugged stainless steel weighing platform provides added durability and is hermetically sealed, making it perfect for food handling operations. The HY10.HRP.H pairs with the PUE HY10 indicator which features a large 10.1" color, touch screen display, which is also hermetically sealed and can be controlled from anywhere in the world with the Parameters Editor software (sold separately). Internal calibration ensures the most consistent weighing standards no matter how many samples are measured. Thanks to the included ALIBI memory software, an extensive database enables archiving results and data exchange between indicators.

Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.

Features

  • Connectivity ports including 2 x RS232 and USB type A
  • Multiple weighing functions
  • Internal calibration
  • ALIBI memory
  • Durable stainless steel construction
  • Large bright 10.1" touch screen display
  • Hermetically sealed display and weighing platform
  • 500 x 500 mm pan size

Applications

  • Weighing
  • Checkweighing
  • Animal/Dynamic weighing
  • Dosing
  • Density determination
  • Differential weighing
  • Formulation
  • Parts counting
  • Percent weighing
  • Max Hold
  • Totalization
  • Peak hold

3 year manufacturer's limited warranty

Datasheet


Maximum capacity [Max]

62

 kg

Minimum load

25

 g

Preload range

30

 kg

Readability [d]

0.1

 g

Tare range

-62

 kg

Repeatability

0.08

 g

Linearity

±0.4

 g

Stabilization time

2

 s

Adjustment

internal (automatic)



Display

10″ graphic colour touchscreen



Weighing pan dimensions

500×500

 mm

Packaging dimensions

610×710×505

 mm

Net weight

30

 kg

Gross weight

35

 kg

Protection class

IP 66/67 construction, IP 68/69 indicator



Construction

Stainless steel AISI304



Weighing pan material

Stainless steel AISI304



Communication interface

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)



Optional interfaces

module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC)



Power supply

100 – 240 V AC 50/60 Hz



Operating temperature

+10 — +40

 °C

Relative humidity

40% — 80%
