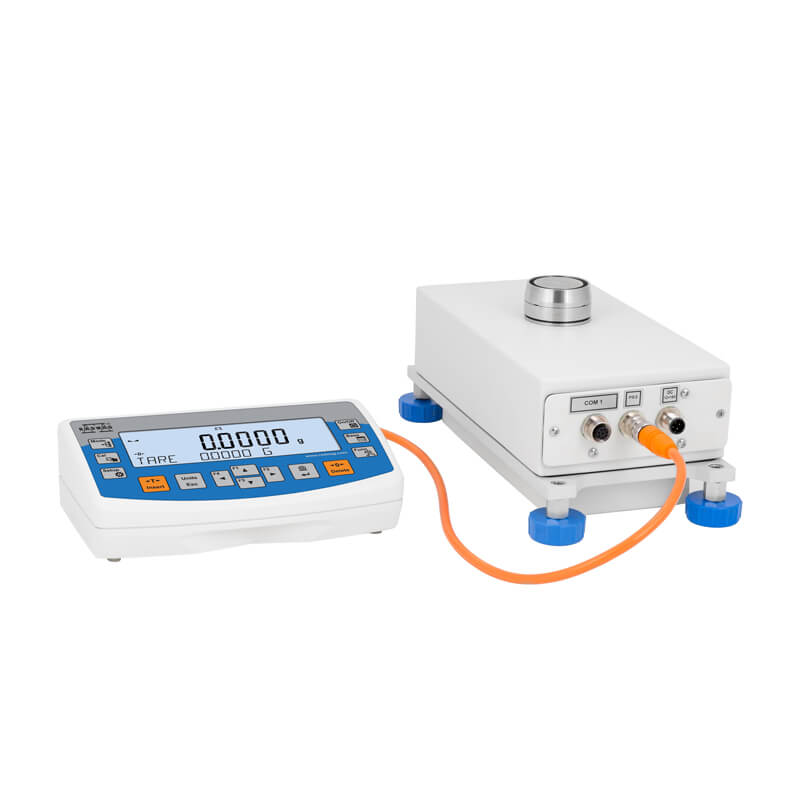

RADWAG MAS.1.51.R WEIGHING MODULE, 51 G X 0.01 MG, INTERNAL CALIBRATION
OVERVIEW
Radwag MAS.1.51.R is designed to integrate into your current measurement system due to its small footprint. Getting a clear readout of measurements is simple via the included R touch panel featuring a 5.7" LCD backlit display. The module operates on the basis of electromagnetic force converter. Internal calibration guarantees a consistent weighing standard between samples as is performed via internal calibration mass. Four leveling feet help to stabilize the module and ensure proper measurements.
Features
- LCD touch panel
- RS232 communication port
- Aluminum construction
- Dedicated power supply
- Overload protection
- Internal calibration
- Multiple hardware configurations
- IP 54
3 year manufacturer's limited warranty
Maximum capacity [Max] |
51 g |
Minimum load |
1 mg |
Preload range |
5.1 g |
Readability [d] |
0.01 mg |
Tare range |
-51 g |
Minimum weight (USP) |
24 mg |
Minimum weight (U=1%,k=2) |
2.4 mg |
Repeatability (Max) |
0.025 mg |
Repeatability (5% Max) |
0.012 mg |
Linearity |
±0.06 mg |
Stabilization time |
6 s |
Display |
LCD (backlit)
|
Weighing pan dimensions |
ø33 mm |
Device dimensions |
289×143×125 mm |
Packaging dimensions |
650×340×315 mm |
Net weight |
4.7 kg |
Gross weight |
6.7 kg |
Protection class |
IP 54
|
Communication interface |
RS232
|
Power supply |
100 – 240 V AC 50/60 Hz
|
Operating temperature |
+10 — +40 °C |
Relative humidity |
40% — 80% |
