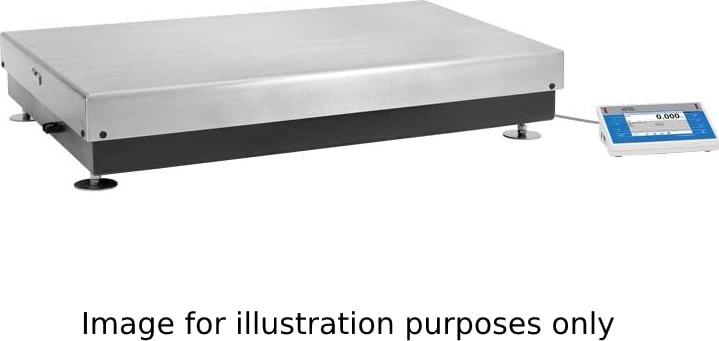

Professional series of PUE 7.1.HRP high-resolution scales is a perfect solution for the light industry, especially wherever high accuracy of measurement, precision and repeatability are crucial.
Automatic adjustment performed by means of an internal weight guarantees the highest quality of operation and repeatability of measurement. In comparison to the manual adjustment process, the automatic one is both time-saving and convenient.
Standard PUE 7.1.HRP high-resolution scales are equipped with the following interfaces: 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wi-Fi®.
Data safety and archiving is assured by software dedicated for RADWAG terminals.
Ergonomics and Comfort of Operation
The terminal has been equipped with 5.7’’ colour TFT touchscreen, ensuring perfect readability, and a membrane keypad. The device features two proximity sensors placed at the front of the housing, which can be freely configured using the menu. The proximity sensors enable touch-free operation making your work even more comfortable, and help to keep the terminal clean.
Ingress Protection Rating
The standard version of the terminal, PUE 7.1, features plastic housing for which the degree of protection is IP43. The panel version, i.e. PUE 7.1 P terminal, has been equipped with housing made of stainless steel, rated with IP66/67. The stainless-steel model can be installed in a control panel or a switchboard.
Vast Range of Applications
Terminal software offers numerous working modes designed to perform various weighing processes such as parts counting, dosing, formulations, transactions, or determination of density of solids. The terminal can be an integral part of many scales and weighing systems operating in various branches of industry.
Communication Interfaces
PUE 7.1 and PUE 7.1P terminals have been equipped with RS232, USB-A and Ethernet interfaces and with 4 digital inputs and outputs. This facilitates both cooperations of the terminal with peripheral devices and data exchange using USB drives. The PUE 7.1 comprises a wireless communication module allowing the terminal to connect with wireless networks.
High Efficiency
The terminal features a dual-core processor with 1 GHz processing power, 256 MB RAM and Windows CE 7.0. With this high-efficiency operation is guaranteed.
Tech Specs
Environmental Testers / Physical Property/Scales / Weight Template
|
| Display (Scales/Weight) |
Digital |
| Wireless |
Yes |
| Tare |
Yes |
| Auto Zero |
Yes |
| Style (Scales/Weight) |
Bench |
Test Equipment General Attributes
|
| Warranty |
2 YEARS |
| Warranty Details |
2 electronic warranty, 3 year mechanism warranty |
| Safety Approval |
CE |
| Interfaces I/O |
LAN / Ethernet, Other, Wifi, USB |
