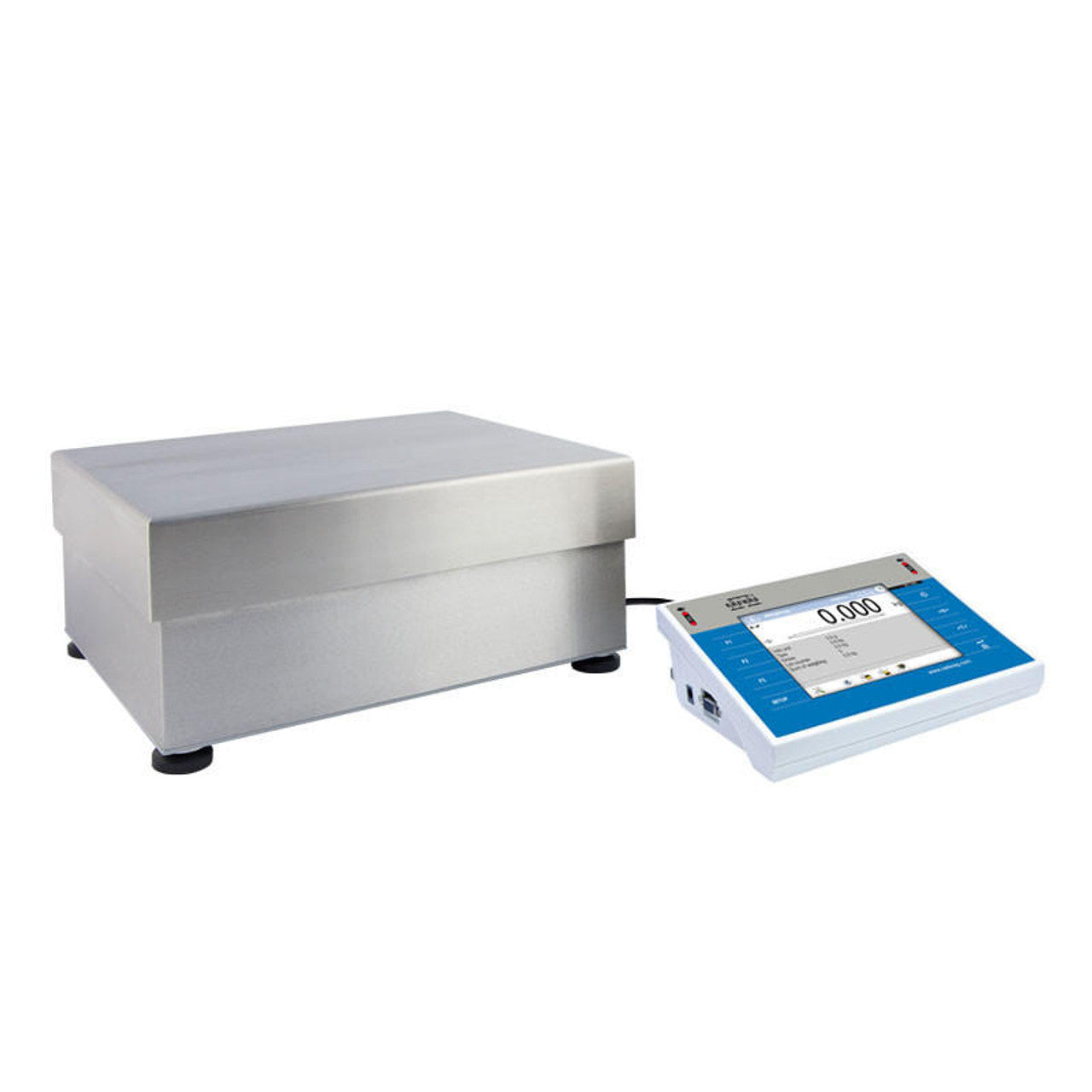

RADWAG PUE 7.1.32.HRP.1 PRECISION BENCH SCALE, 32 KG X 0.1 G

The Radwag PUE 7.1 HRP high resolution scales are designed for light industrial applications where high accuracy and precision are critical.  The scale base has an IP67 rating meaning its internal components are protected from dust and water.  PUE 7.1 HRP scales have multiple communication ports for communicating with external devices such as printers and computers and have 4 inputs and 4 outputs for automating weighing processes.  Standard weighing applications in addition to general weighing include parts counting, checkweighing, formulation, dosing, and density determination.  The digital indicator features a large 5.7" color touchscreen and configurable proximity sensors that enable touch free operation of user configured functions.

Features

• Overload protection
• External calibration
• IP67 rating for scale base
• IP43 rating for digital indicator
• 2 x RS 232, 2 x USB, 1 x Ethernet, wireless module
• 4 inputs
• 4 outputs
• Stainless steel weighing pan
• Powder coated steel scale base
• Plastic indicator housing
• Multiple weighing units (g, kg, ct, lb, oz, N)

Applications

• Weighing
• Checkweighing
• Parts counting
• Dosing
• Formulation
• Density determination

3 year manufacturer's limited warranty

Capacity:32 kg

Readability:0.1 g

Stabilization Time:3 second

Repeatability:0.1 g

Linearity:+/- 0.3 g

Operating Temp:10 - 40 C

Operating Humidity:40-80%

Sensitivity Drift:2 ppm/C in temp 10-40 C

Calibration: External calibration

Communication:2 x RS232, 2 x USB, 1 x ethernet, wireless

Display Type:5.7" TFT Color Touchscreen

Platform Size:360 x 280 mm/14.17 x 11.02 in

Construction: Stainless Steel Platform,Mild Steel Scale Base, Plastic Digital Indicator

Power:100-240 VAC / 50/60 Hz Power Supply

Device Dimensions:360 x 313 x 170 mm/14.17 x 12.32 x 6.69 in

Device Weight:54.4 lb

Brand: Radwag

Model: PUE 7.1.32.HRP.1
