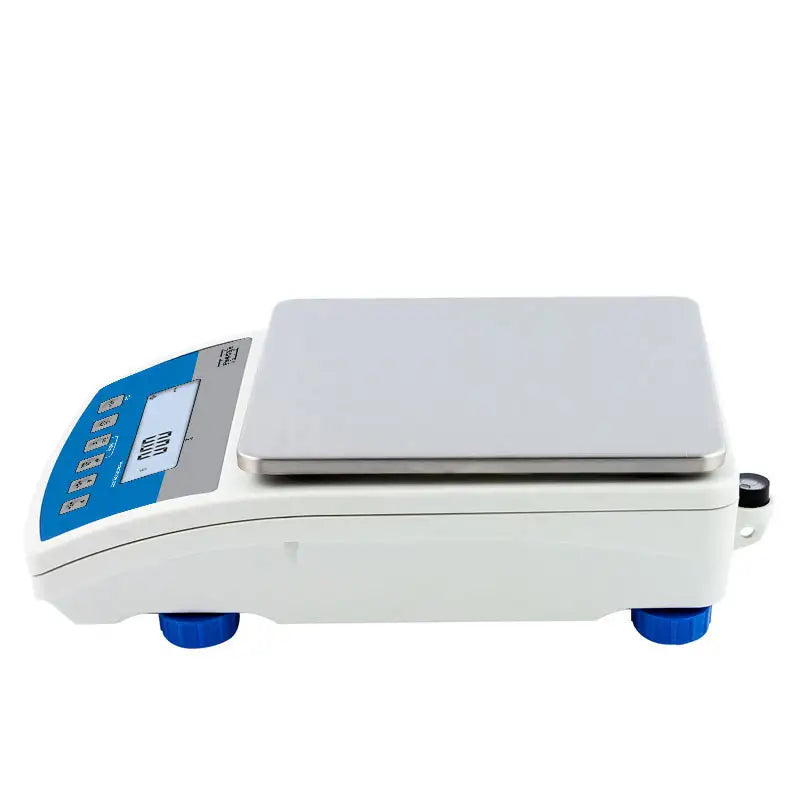

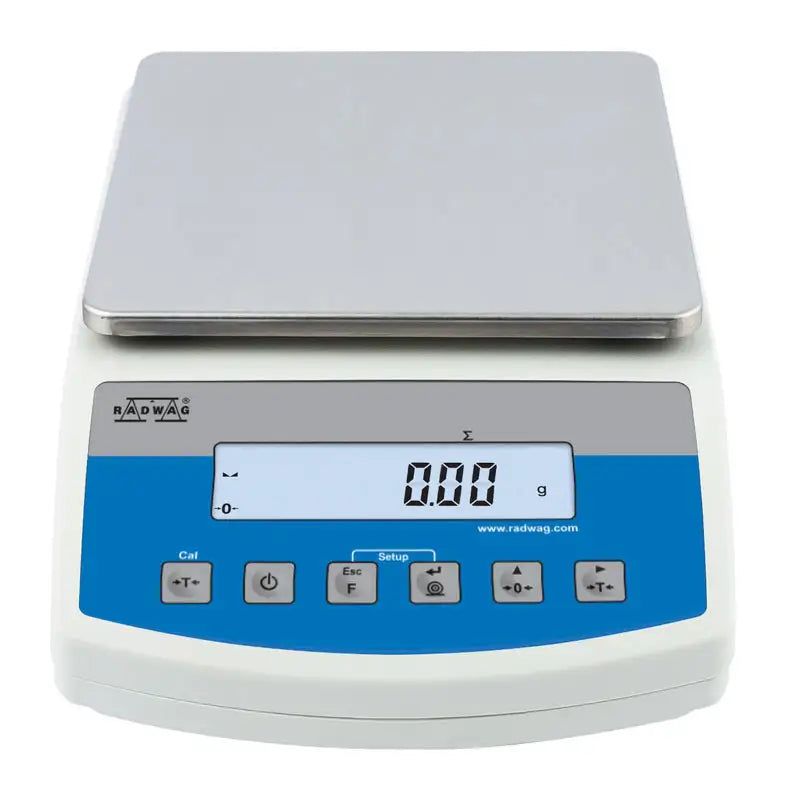

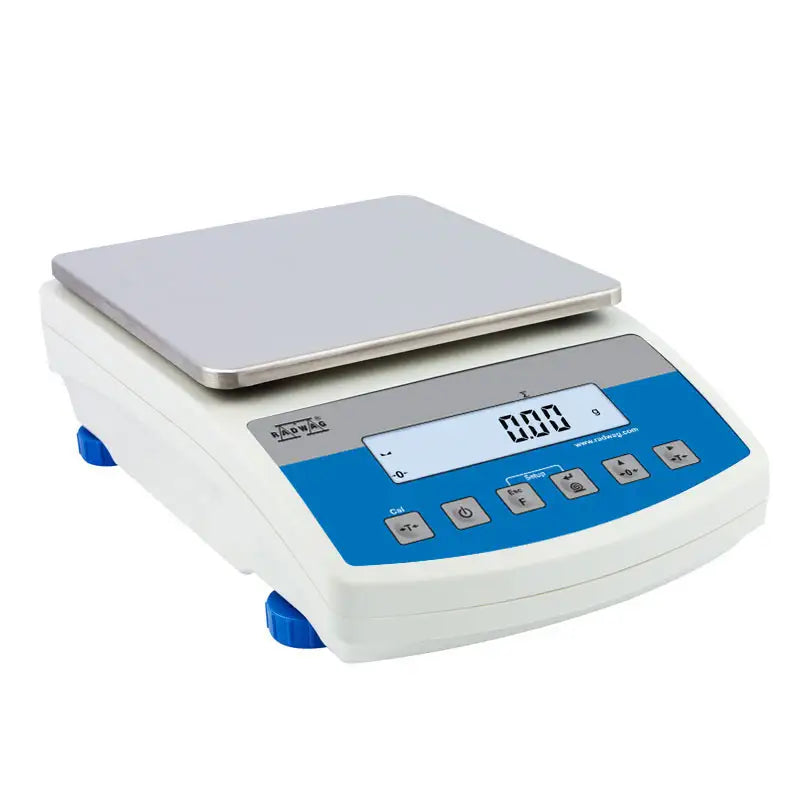

RADWAG WLC 6/A2 with 4IN/4OUT Module Precision Balance 6000 x 0.1 g
Description
FeaturesRadwag WLC 6/A2 with 4IN/4OUT Module Precision BalanceRadwag WLC 6/A2 series precision balance provides fast and accurate measurements at an affordable price. Most sample sizes can be accommodated for with the large stainless steel weighing pan. An expanded communication port includes two RS232, USB A, and USB B connectivity to peripheral devices such as PCs and printers. The WLC features a real-time clock and ALIBI memory. Remote operation is possible through an internal battery so you can weigh where other scales would not be able to reach. Backlit LCD screen guarantees clear result presentation, ideal for areas with low lighting. Features
Weighing Applications
|
Please note that for international transactions, customers will be responsible for import taxes, clearance, and duty taxes.
Datasheet
Metrological parameters
Physical parameters
Communication interface
Electrical parameters
Environmental conditions
Maximum capacity [Max] |
6 kg |
Minimum load |
5 g |
Readability [d] |
0.1 g |
Verification scale interval [e] |
1 g |
Tare range |
-6 kg |
Repeatability |
0.1 g |
Linearity |
±0.2 g |
Stabilization time |
3 s |
OIML Class |
II
|
Leveling system |
manual
|
Display |
LCD (backlit)
|
Protection class |
IP 43
|
Weighing pan dimensions |
195×195 mm |
Packaging dimensions |
470×380×336 mm |
Net weight |
2.8 kg |
Gross weight |
4.3 kg |
Communication interface |
2×RS232, USB-A, USB-B
|
Power supply |
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
|
Operation time on batteries |
15 h (average time)
|
Operating temperature |
+15 — +30 °C |
Relative humidity |
10% — 85% RH no condensation |
